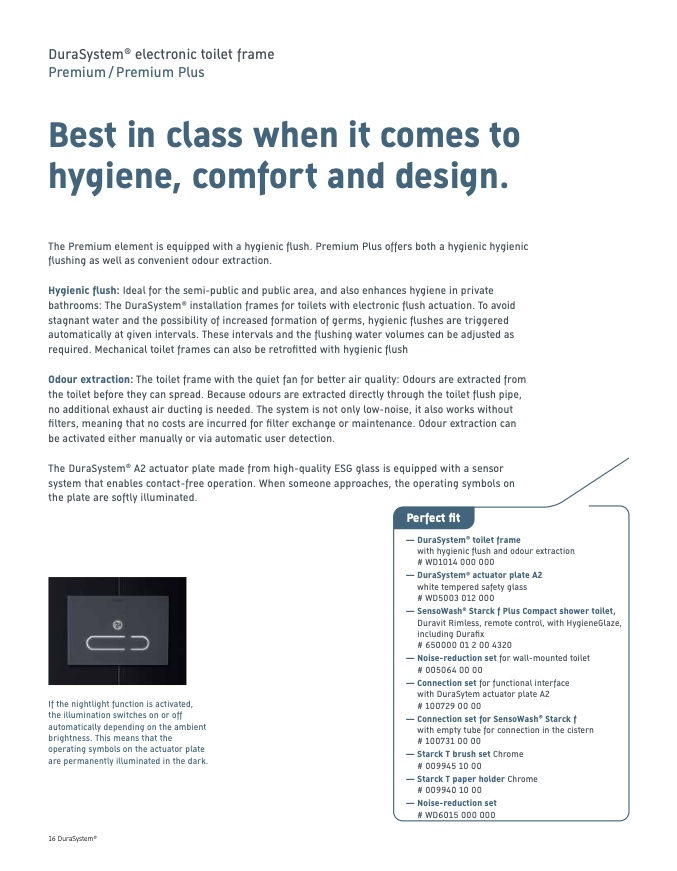

DuraSystem

®

electronic toilet frame

Premium / Premium Plus

Best in class when it comes to

hygiene, comfort and design.

The Premium element is equipped with a hygienic flush. Premium Plus offers both a hygienic hygienic

flushing as well as convenient odour extraction.

Hygienic flush: Ideal for the semi-public and public area, and also enhances hygiene in private

bathrooms: The DuraSystem

®

installation frames for toilets with electronic flush actuation. To avoid

stagnant water and the possibility of increased formation of germs, hygienic flushes are triggered

automatically at given intervals. These intervals and the flushing water volumes can be adjusted as

required. Mechanical toilet frames can also be retrofitted with hygienic flush

Odour extraction: The toilet frame with the quiet fan for better air quality: Odours are extracted from

the toilet before they can spread. Because odours are extracted directly through the toilet flush pipe,

no additional exhaust air ducting is needed. The system is not only low-noise, it also works without

filters, meaning that no costs are incurred for filter exchange or maintenance. Odour extraction can

be activated either manually or via automatic user detection.

The DuraSystem

®

A2 actuator plate made from high-quality ESG glass is equipped with a sensor

system that enables contact-free operation. When someone approaches, the operating symbols on

the plate are softly illuminated.

If the nightlight function is activated,

the illumination switches on or off

automatically depending on the ambient

brightness. This means that the

operating symbols on the actuator plate

are permanently illuminated in the dark.

Perfect fit

— DuraSystem

®

toilet frame

with hygienic flush and odour extraction

# WD1014 000 000

— DuraSystem

®

actuator plate A2

white tempered safety glass

# WD5003 012 000

— SensoWash

®

Starck f Plus Compact shower toilet,

Duravit Rimless, remote control, with HygieneGlaze,

including Durafix

# 650000 01 2 00 4320

— Noise-reduction set for wall-mounted toilet

# 005064 00 00

— Connection set for functional interface

with DuraSytem actuator plate A2

# 100729 00 00

— Connection set for SensoWash

®

Starck f

with empty tube for connection in the cistern

# 100731 00 00

— Starck T brush set Chrome

# 009945 10 00

— Starck T paper holder Chrome

# 009940 10 00

— Noise-reduction set

16 DuraSystem

®

# WD6015 000 000
