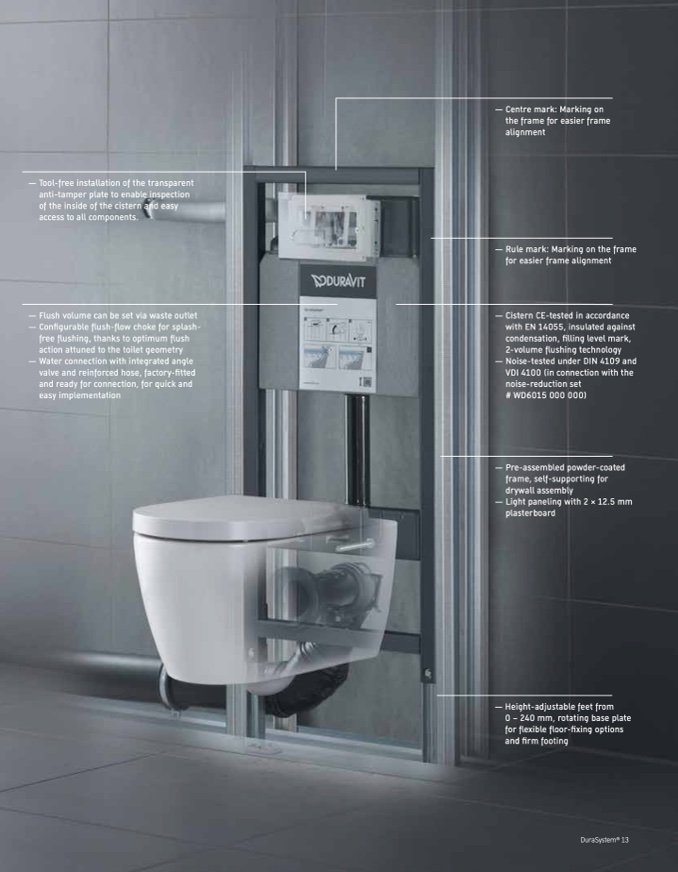

— Tool-free installation of the transparent

anti-tamper plate to enable inspection

of the inside of the cistern and easy

access to all components.

— Flush volume can be set via waste outlet

— Configurable flush-flow choke for splash-

free flushing, thanks to optimum flush

action attuned to the toilet geometry

— Water connection with integrated angle

valve and reinforced hose, factory-fitted

and ready for connection, for quick and

easy implementation

— Centre mark: Marking on

the frame for easier frame

alignment

— Rule mark: Marking on the frame

for easier frame alignment

— Cistern CE-tested in accordance

with EN 14055, insulated against

condensation, filling level mark,

2-volume flushing technology

— Noise-tested under DIN 4109 and

VDI 4100 (in connection with the

noise-reduction set

# WD6015 000 000)

— Pre-assembled powder-coated

frame, self-supporting for

drywall assembly

— Light paneling with 2 × 12.5 mm

plasterboard

— Height-adjustable feet from

0 – 240 mm, rotating base plate

for flexible floor-fixing options

and firm footing

DuraSystem

®

13
