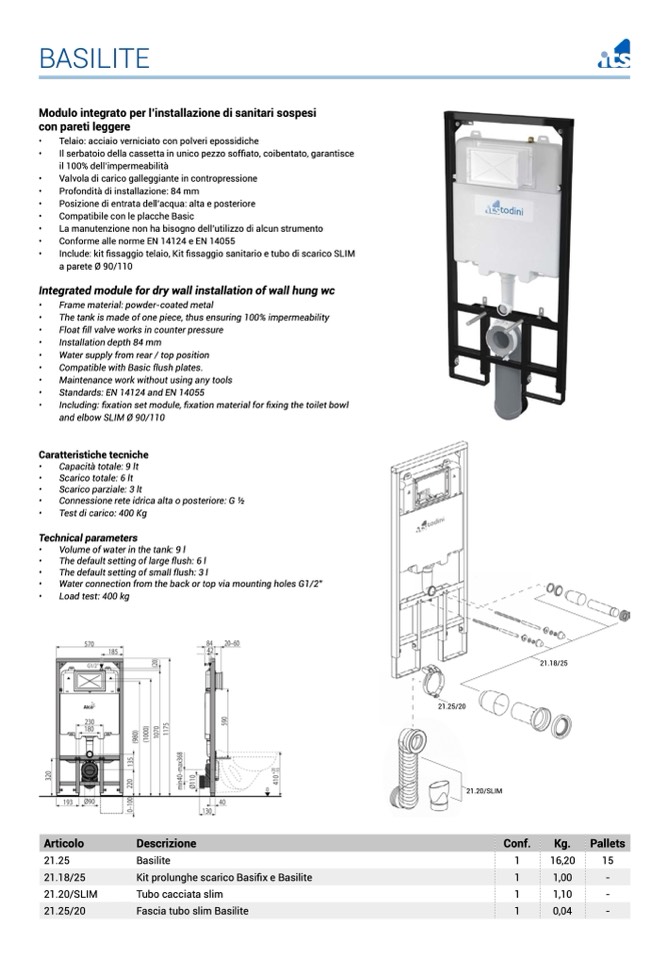

BASILITE

Modulo integrato per l’installazione di sanitari sospesi

con pareti leggere

•

Telaio: acciaio verniciato con polveri epossidiche

•

Il serbatoio della cassetta in unico pezzo soffiato, coibentato, garantisce

il 100% dell’impermeabilità

•

Valvola di carico galleggiante in contropressione

•

Profondità di installazione: 84 mm

•

Posizione di entrata dell’acqua: alta e posteriore

•

Compatibile con le placche Basic

•

La manutenzione non ha bisogno dell’utilizzo di alcun strumento

•

Conforme alle norme EN 14124 e EN 14055

•

Include: kit fissaggio telaio, Kit fissaggio sanitario e tubo di scarico SLIM

a parete Ø 90/110

Integrated module for dry wall installation of wall hung wc

•

Frame material: powder-coated metal

•

The tank is made of one piece, thus ensuring 100% impermeability

•

Float fill valve works in counter pressure

•

Installation depth 84 mm

•

Water supply from rear / top position

•

Compatible with Basic flush plates.

•

Maintenance work without using any tools

•

Standards: EN 14124 and EN 14055

•

Including: fixation set module, fixation material for fixing the toilet bowl

and elbow SLIM Ø 90/110

Caratteristiche tecniche

•

Capacità totale: 9 lt

•

Scarico totale: 6 lt

•

Scarico parziale: 3 lt

•

Connessione rete idrica alta o posteriore: G 1⁄2

•

Test di carico: 400 Kg

Technical parameters

•

Volume of water in the tank: 9 l

•

The default setting of large flush: 6 l

•

The default setting of small flush: 3 l

•

Water connection from the back or top via mounting holes G1/2”

•

Load test: 400 kg

21.25

Basilite

21.20/SLIM

Tubo cacciata slim

21.18/25

21.25/20

21.20/SLIM

Articolo

Descrizione

Conf.

Kg.

Pallets

1

16,20

15

21.18/25

Kit prolunghe scarico Basifix e Basilite

1

1,00

-

-

1

1,10

21.25/20

Fascia tubo slim Basilite

1

0,04

-
