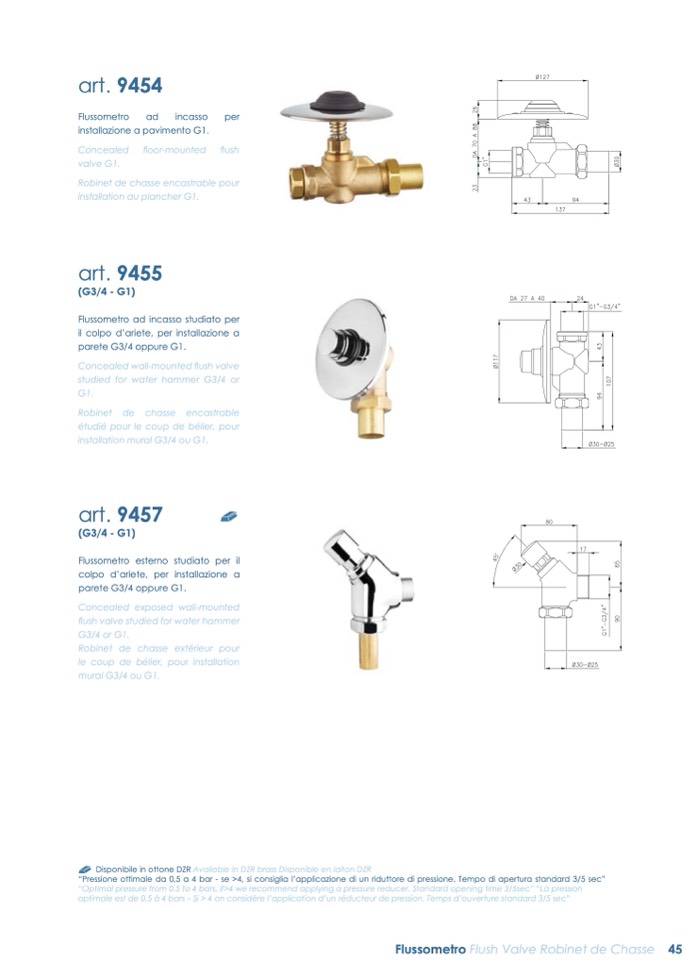

art. 9454

Flussometro

ad

incasso

per

installazione a pavimento G1.

Concealed floor-mounted flush

valve G1.

Robinet de chasse encastrable pour

installation au plancher G1.

art. 9455

(G3/4 - G1)

Flussometro ad incasso studiato per

il colpo d’ariete, per installazione a

parete G3/4 oppure G1.

Concealed wall-mounted flush valve

studied for water hammer G3/4 or

G1.

Robinet de chasse encastrable

étudié pour le coup de bélier, pour

installation mural G3/4 ou G1.

art. 9457

(G3/4 - G1)

Flussometro esterno studiato per il

colpo d’ariete, per installazione a

parete G3/4 oppure G1.

Concealed exposed wall-mounted

flush valve studied for water hammer

G3/4 or G1.

Robinet de chasse extérieur pour

le coup de bélier, pour installation

mural G3/4 ou G1.

Disponibile in ottone DZR Available in DZR brass Disponible en laiton DZR

“Pressione ottimale da 0,5 a 4 bar - se >4, si consiglia l’applicazione di un riduttore di pressione. Tempo di apertura standard 3/5 sec”

“Optimal pressure from 0.5 to 4 bars, if>4 we recommend applying a pressure reducer. Standard opening time 3/5sec” “La pression

optimale est de 0,5 à 4 bars – Si > 4 on considère l’application d’un réducteur de pression. Temps d’ouverture standard 3/5 sec”

Flussometro Flush Valve Robinet de Chasse 45
