Applicazioni

Applications

Pressione Max

Max pressure

Temperatura

Temperature

Filetto

Threaded

Misure

Sizes

Corpo

Body

Certificazioni e conformità

Certifications and

declaration of conformity

P

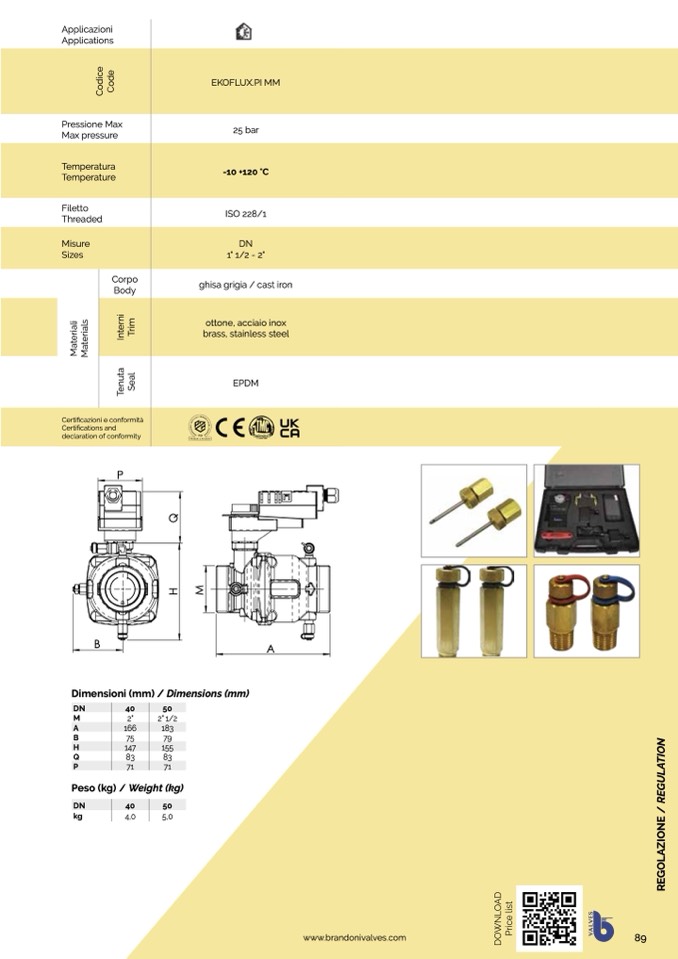

EKOFLUX.PI MM

A

B

H

Q

P

166

183

75

79

147

155

83

83

71

71

B

A

Dimensioni (mm) / Dimensions (mm)

DN

40

50

M

2"

2"1/2

Peso (kg) / Weight (kg)

DN

40

50

kg

4,0

5,0

25 bar

-10 +120 °C

ISO 228/1

DN

1" 1/2 - 2"

ghisa grigia / cast iron

ottone, acciaio inox

brass, stainless steel

EPDM

www.brandonivalves.com
