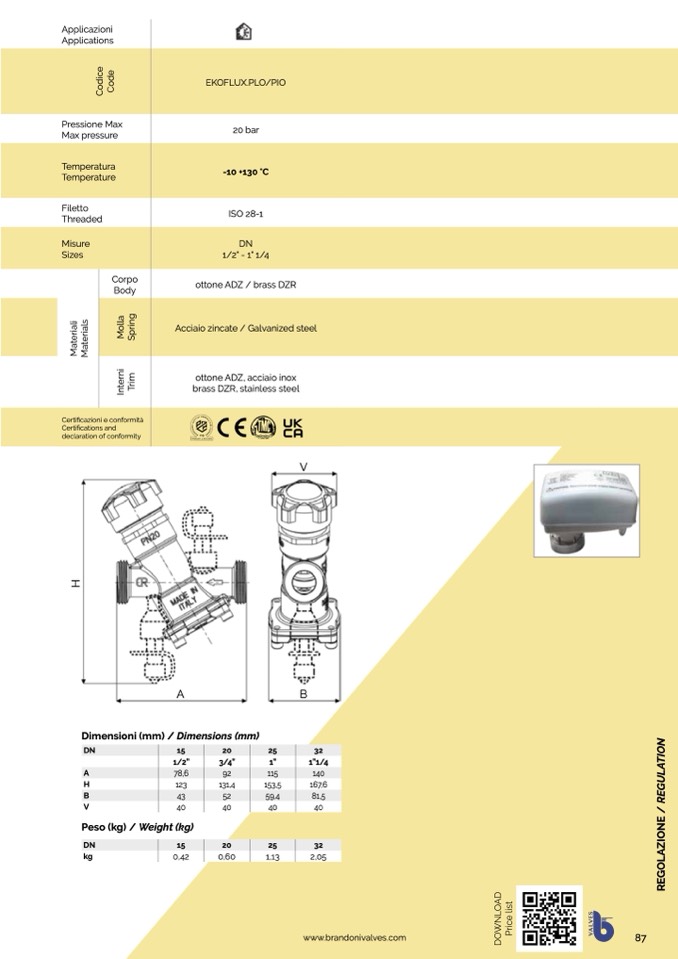

Applicazioni

Applications

Pressione Max

Max pressure

Misure

Sizes

Corpo

Body

EKOFLUX.PLO/PIO

20 bar

Temperatura

Temperature

-10 +130 °C

Filetto

Threaded

ISO 28-1

DN

1/2" - 1" 1/4

ottone ADZ / brass DZR

Acciaio zincate / Galvanized steel

ottone ADZ, acciaio inox

brass DZR, stainless steel

Certificazioni e conformità

Certifications and

declaration of conformity

V

A

B

Dimensioni (mm) / Dimensions (mm)

Peso (kg) / Weight (kg)

DN

15

20

25

32

1/2”

3/4”

1”

1”1/4

A

78,6

92

115

140

H

123

131,4

153,5

167,6

B

43

52

59,4

81,5

V

40

40

40

40

DN

15

20

25

32

kg

0,42

0,60

1,13

2,05

www.brandonivalves.com
