Applicazioni

Applications

Pressione Max

Max pressure

Temperatura

Temperature

Filetto

Threaded

Misure

Sizes

Corpo

Body

Certificazioni e conformità

Certifications and

declaration of conformity

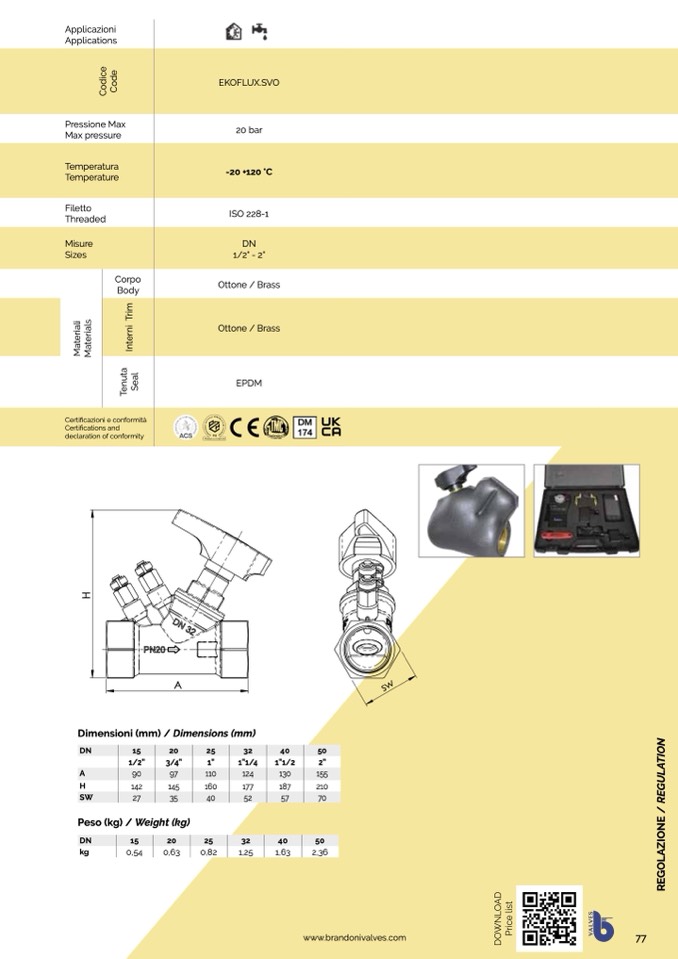

EKOFLUX.SVO

A

sw

Dimensioni (mm) / Dimensions (mm)

DN

15

20

25

32

40

50

1/2”

3/4”

1”

1”1/4

1”1/2

2”

A

90

97

110

124

130

155

H

142

145

160

177

187

210

SW

27

35

40

52

57

70

Peso (kg) / Weight (kg)

DN

15

20

25

32

40

50

kg

0,54

0,63

0,82

1,25

1,63

2,36

20 bar

-20 +120 °C

ISO 228-1

DN

1/2" - 2"

Ottone / Brass

Ottone / Brass

EPDM

www.brandonivalves.com
