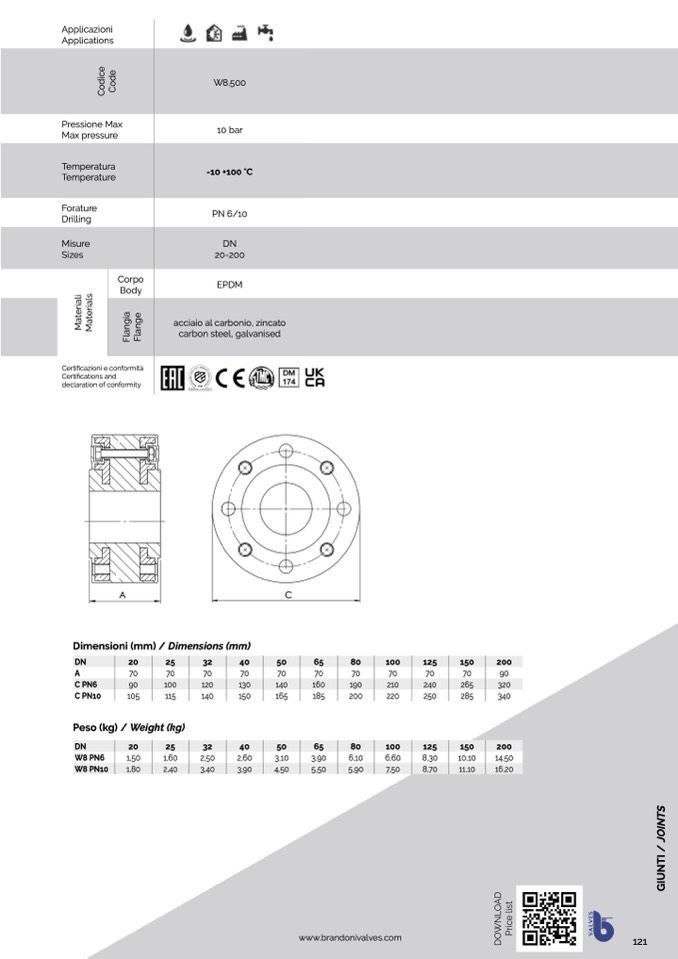

Applicazioni
Applications
Pressione Max
Max pressure
Temperatura
Temperature
Forature
Drilling
Misure
Sizes
W8.500
Corpo
Body
10 bar
-10 +100 °C
PN 6/10
DN
20-200
EPDM
acciaio al carbonio, zincato
carbon steel, galvanised
Certificazioni e conformità
Certifications and
declaration of conformity
A
C
Dimensioni (mm) / Dimensions (mm)
DN
20
25
32
40
50
65
80
100
125
150
200
A
70
70
70
70
70
70
70
70
70
70
90
C PN6
C PN10
90
100
120
130
140
160
190
210
240
265
320
105
115
140
150
165
185
200
220
250
285
340
Peso (kg) / Weight (kg)
DN
20
25
32
40
50
65
80
100
125
150
200
W8 PN6
1,50
1,60
2,50
2,60
3,10
3,90
6,10
6,60
8,30
10,10
14,50
W8 PN10
1,80
2,40
3,40
3,90
4,50
5,50
5,90
7,50
8,70
11,10
16,20
