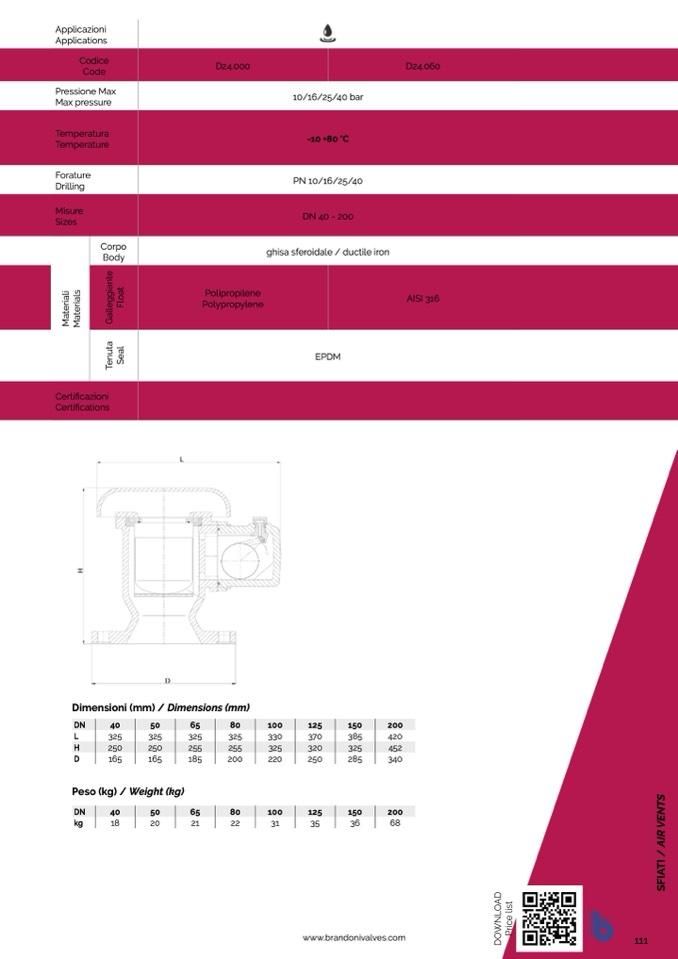

Applicazioni

Applications

Misure

Sizes

Codice

Code

D24.000

D24.060

Pressione Max

Max pressure

10/16/25/40 bar

Temperatura

Temperature

-10 +80 °C

Forature

Drilling

PN 10/16/25/40

DN 40 - 200

Corpo

Body

Polipropilene

Polypropylene

ghisa sferoidale / ductile iron

EPDM

AISI 316

Certificazioni

Certifications

Dimensioni (mm) / Dimensions (mm)

Peso (kg) / Weight (kg)

DN

40

50

65

80

100

125

150

200

L

325

325

325

325

330

370

385

420

H

250

250

255

255

325

320

325

452

D

165

165

185

200

220

250

285

340

DN

40

50

65

80

100

125

150

200

kg

18

20

21

22

31

35

36

68
