1516C

1037S2

1510

1400B2

1560

1521-10

1540-10

1535/02-10

1532-10

1533-10

1524A-10

440

1532-10

1538-10

1533-10

1501A

Disegno tecnico - Technical drawing

Info packing

125

310÷340

40

Dimensioni imballo singolo

Dimensions of a single box

Peso imballo singolo

Weight of a single box

N° scatole singole su pallet

N° single box on a pallet

Dimensioni pallet

Dimensions of a pallet

44x13,5x38

1030S2

2,22

1031S2

2,40

90

80x120x236

5

70x45x39

290±30

85

345

330÷580

100÷240

1531S2

1037S2

1400B2

1501A

1510

1516C

1521-10

1524A-10

1531S2

1532-10

1533-10

1535-10

1538-10

1540-10

1560

Coperchio completo di pulsanti per Plus 2

Cover complete with push buttons for “Plus 2”

Meccanismo di scarico con dado e controdado

Outlet valve with nut and back nut

Tubo di scarico Ø50x40, lunghezza mm 350x245

Pipe for wall low-level cistern Ø50x40, length mm 350x245

Galleggiante Rambo 3/8” codolo ottone

Rambo filling valve 3/8” brass tang

Rubinetto a squadra 1/2” ottone cromato per galleggianti 3/8”

1/2” chromate brass tap for 3/8” filling valves

Set 10 tappini laterali

Set 10 side plugs

Set 10 morsetti per vaso Ø55/60 esterno e Ø40 interno

Set 10 bowl gaskets external Ø55/60, internal Ø40

Doppio pulsante per Plus 2

Double push-button for “Plus 2”

Set 10 dadi per fissaggio meccanismo

Set 10 outlet valve nuts

Set 10 controdadi bianchi per fissaggio tubo Ø50

Set 10 fixing pipe back nuts Ø50

Set 10 guarnizioni piane base meccanismo

Set 10 outlet valve flat gaskets

Set 10 guarnizioni coniche per tubo Ø50

Set 10 conical pipe gaskets Ø50

Set 10 guarnizioni di tenuta meccanismo

Set 10 outlet valve gasket

Kit per fissaggio a muro

1400B2

YOUR SMART

SOLUTION

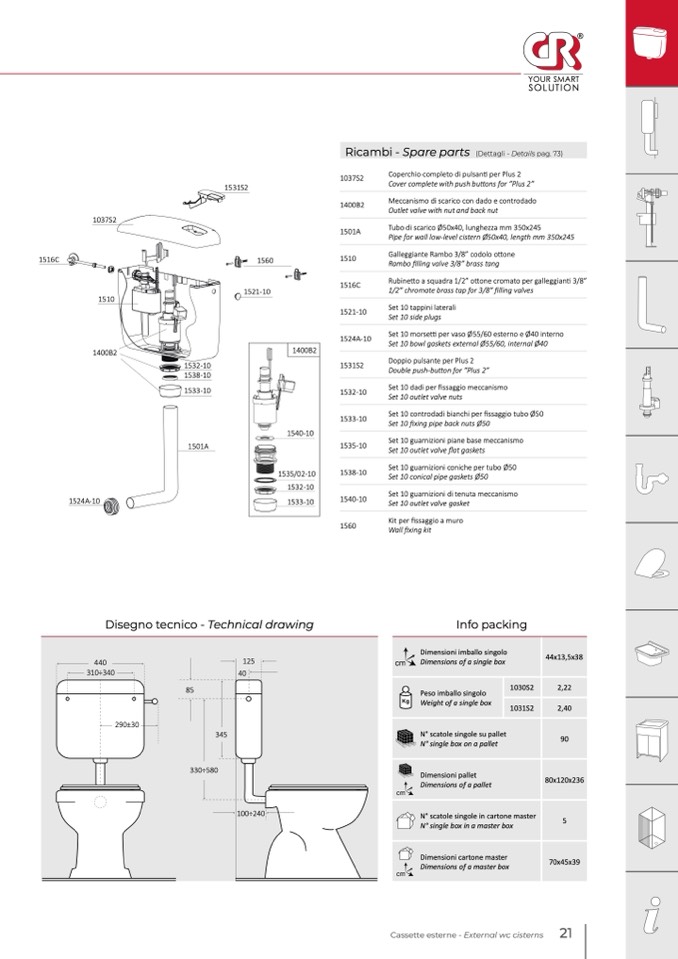

Ricambi - Spare parts

(Dettagli - Details pag. 73)

Wall fixing kit

N° scatole singole in cartone master

N° single box in a master box

Dimensioni cartone master

Dimensions of a master box

Cassette esterne - External wc cisterns
