Coperchio completo di pulsanti per Delta 2

Cover complete with push buttons for “Delta 2”

Meccanismo di scarico con dado e controdado

Outlet valve with nut and back nut

Tubo di scarico Ø50x40, lunghezza mm 350x245

Pipe for wall low-level cistern Ø50x40, length mm 350x245

Galleggiante Rambo 3/8” codolo ottone

Rambo filling valve 3/8” brass tang

Rubinetto a squadra 1/2” ottone cromato per galleggianti 3/8”

1/2” chromate brass tap for 3/8” filling valves

Set 10 tappini laterali

Set 10 side plugs

Set 10 morsetti per vaso Ø55/60 esterno e Ø40 interno

Set 10 bowl gaskets external Ø55/60, internal Ø40

Gruppo ponte con leve per Delta 2

Bridge with levers for “Delta 2”

Set 10 dadi per fissaggio meccanismo

Set 10 outlet valve nuts

Set 10 controdadi bianchi per fissaggio tubo Ø50

Set 10 fixing pipe back nuts Ø50

Set 10 guarnizioni piane base meccanismo

Set 10 outlet valve flat gaskets

Set 10 guarnizioni coniche per tubo Ø50

Set 10 conical pipe gaskets Ø50

Set 10 guarnizioni di tenuta meccanismo

Set 10 outlet valve gasket

Kit per fissaggio a muro

440

310÷340

40

110÷240

Dimensioni imballo singolo

Dimensions of a single box

Peso imballo singolo

Weight of a single box

N° scatole singole su pallet

N° single box on a pallet

Dimensioni pallet

Dimensions of a pallet

44x13,5x38

1085

2,28

1086

2,46

90

80x120x236

5

70x45x39

1532-10

1538-10

1533-10

1501A

1540-10

1535-10

1532-10

1533-10

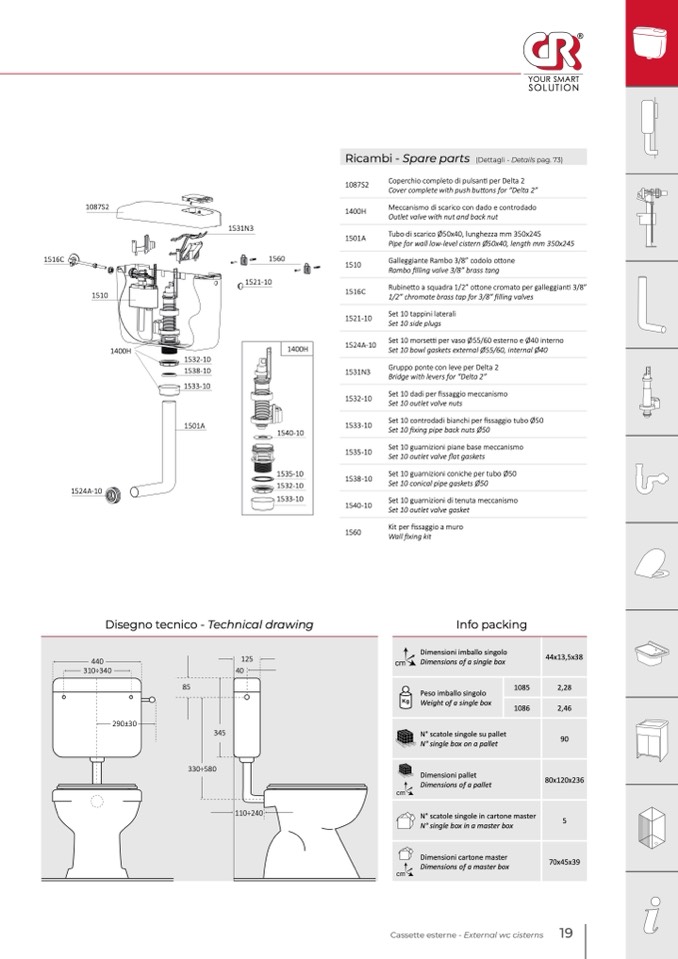

Disegno tecnico - Technical drawing

125

Info packing

290±30

85

345

330÷580

1400H

YOUR SMART

SOLUTION

Ricambi - Spare parts

(Dettagli - Details pag. 73)

Wall fixing kit

N° scatole singole in cartone master

N° single box in a master box

Dimensioni cartone master

Dimensions of a master box
