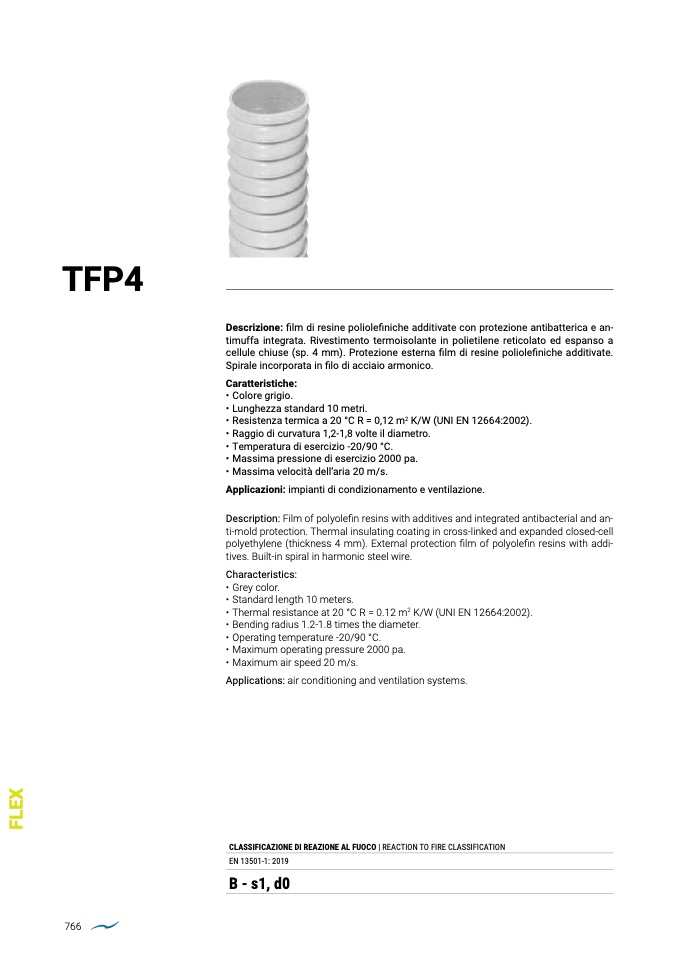

TFP4

766

Descrizione: film di resine poliolefiniche additivate con protezione antibatterica e an-

timuffa integrata. Rivestimento termoisolante in polietilene reticolato ed espanso a

cellule chiuse (sp. 4 mm). Protezione esterna film di resine poliole

finiche additivate.

Spirale incorporata in filo di acciaio armonico.

Caratteristiche:

• Colore grigio.

• Lunghezza standard 10 metri.

• Resistenza termica a 20 °C R = 0,12 m

2

K/W (UNI EN 12664:2002).

• Raggio di curvatura 1,2-1,8 volte il diametro.

• Temperatura di esercizio -20/90 °C.

• Massima pressione di esercizio 2000 pa.

• Massima velocit

à dell’aria 20 m/s.

Applicazioni: impianti di condizionamento e ventilazione.

Description: Film of polyole

fin resins with additives and integrated antibacterial and an-

ti-mold protection. Thermal insulating coating in cross-linked and expanded closed-cell

polyethylene (thickness 4 mm). External protection

film of polyole

fin resins with addi-

tives. Built-in spiral in harmonic steel wire.

Characteristics:

• Grey color.

• Standard length 10 meters.

• Thermal resistance at 20 °C R = 0.12 m

2

K/W (UNI EN 12664:2002).

• Bending radius 1.2-1.8 times the diameter.

• Operating temperature -20/90 °C.

• Maximum operating pressure 2000 pa.

• Maximum air speed 20 m/s.

Applications: air conditioning and ventilation systems.

CLASSIFICAZIONE DI REAZIONE AL FUOCO | REACTION TO FIRE CLASSIFICATION

EN 13501-1: 2019

B - s1, d0

F

L

E

X
