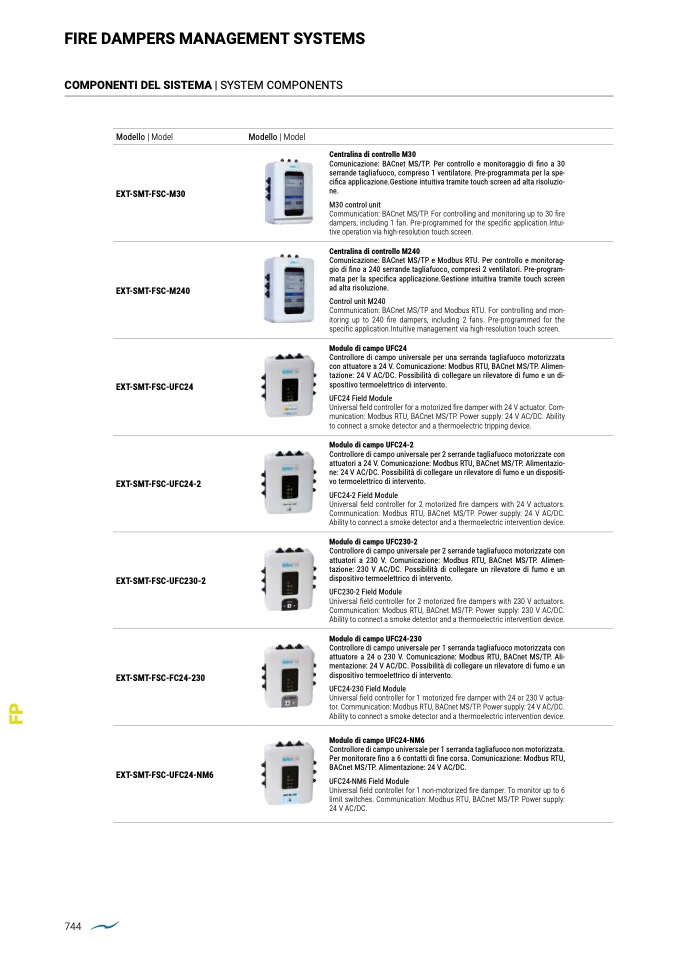

FIRE DAMPERS MANAGEMENT SYSTEMS

COMPONENTI DEL SISTEMA | SYSTEM COMPONENTS

744

Modello | Model

EXT-SMT-FSC-M30

EXT-SMT-FSC-M240

EXT-SMT-FSC-UFC24

EXT-SMT-FSC-UFC24-2

EXT-SMT-FSC-UFC230-2

EXT-SMT-FSC-FC24-230

EXT-SMT-FSC-UFC24-NM6

Modello | Model

Centralina di controllo M30

Comunicazione: BACnet MS/TP. Per controllo e monitoraggio di

fino a 30

serrande tagliafuoco, compreso 1 ventilatore. Pre-programmata per la spe-

cifica applicazione.Gestione intuitiva tramite touch screen ad alta risoluzio-

ne.

M30 control unit

Communication: BACnet MS/TP. For controlling and monitoring up to 30

fire

dampers, including 1 fan. Pre-programmed for the speci

fic application.Intui-

tive operation via high-resolution touch screen.

Centralina di controllo M240

Comunicazione: BACnet MS/TP e Modbus RTU. Per controllo e monitorag-

gio di

fino a 240 serrande tagliafuoco, compresi 2 ventilatori. Pre-program-

mata per la specifica applicazione.Gestione intuitiva tramite touch screen

ad alta risoluzione.

Control unit M240

Communication: BACnet MS/TP and Modbus RTU. For controlling and mon-

itoring up to 240

fire dampers, including 2 fans. Pre-programmed for the

speci

fic application.Intuitive management via high-resolution touch screen.

Modulo di campo UFC24

Controllore di campo universale per una serranda tagliafuoco motorizzata

con attuatore a 24 V. Comunicazione: Modbus RTU, BACnet MS/TP. Alimen-

tazione: 24 V AC/DC. Possibilità di collegare un rilevatore di fumo e un di-

spositivo termoelettrico di intervento.

UFC24 Field Module

Universal

field controller for a motorized fire damper with 24 V actuator. Com-

munication: Modbus RTU, BACnet MS/TP. Power supply: 24 V AC/DC. Ability

to connect a smoke detector and a thermoelectric tripping device.

Modulo di campo UFC24-2

Controllore di campo universale per 2 serrande tagliafuoco motorizzate con

attuatori a 24 V. Comunicazione: Modbus RTU, BACnet MS/TP. Alimentazio-

ne: 24 V AC/DC. Possibilit

à di collegare un rilevatore di fumo e un dispositi-

vo termoelettrico di intervento.

UFC24-2 Field Module

Universal

field controller for 2 motorized fire dampers with 24 V actuators.

Communication: Modbus RTU, BACnet MS/TP. Power supply: 24 V AC/DC.

Ability to connect a smoke detector and a thermoelectric intervention device.

Modulo di campo UFC230-2

Controllore di campo universale per 2 serrande tagliafuoco motorizzate con

attuatori a 230 V. Comunicazione: Modbus RTU, BACnet MS/TP. Alimen-

tazione: 230 V AC/DC. Possibilit

à di collegare un rilevatore di fumo e un

dispositivo termoelettrico di intervento.

UFC230-2 Field Module

Universal field controller for 2 motorized

fire dampers with 230 V actuators.

Communication: Modbus RTU, BACnet MS/TP. Power supply: 230 V AC/DC.

Ability to connect a smoke detector and a thermoelectric intervention device.

Modulo di campo UFC24-230

Controllore di campo universale per 1 serranda tagliafuoco motorizzata con

attuatore a 24 o 230 V. Comunicazione: Modbus RTU, BACnet MS/TP. Ali-

mentazione: 24 V AC/DC. Possibilit

à di collegare un rilevatore di fumo e un

dispositivo termoelettrico di intervento.

UFC24-230 Field Module

Universal

field controller for 1 motorized

fire damper with 24 or 230 V actua-

tor. Communication: Modbus RTU, BACnet MS/TP. Power supply: 24 V AC/DC.

Ability to connect a smoke detector and a thermoelectric intervention device.

Modulo di campo UFC24-NM6

Controllore di campo universale per 1 serranda tagliafuoco non motorizzata.

Per monitorare

fino a 6 contatti di

fine corsa. Comunicazione: Modbus RTU,

BACnet MS/TP. Alimentazione: 24 V AC/DC.

UFC24-NM6 Field Module

Universal field controller for 1 non-motorized fire damper. To monitor up to 6

limit switches. Communication: Modbus RTU, BACnet MS/TP. Power supply:

24 V AC/DC.
