IRAI

24 / 230 V

M30

UFC24

Building Automation

(opzionale)

Zone1

Servizio Cloud

(opzionale)

UFC24-2 UFC230-2

UFC24-NM-6 UFC230-NM-6

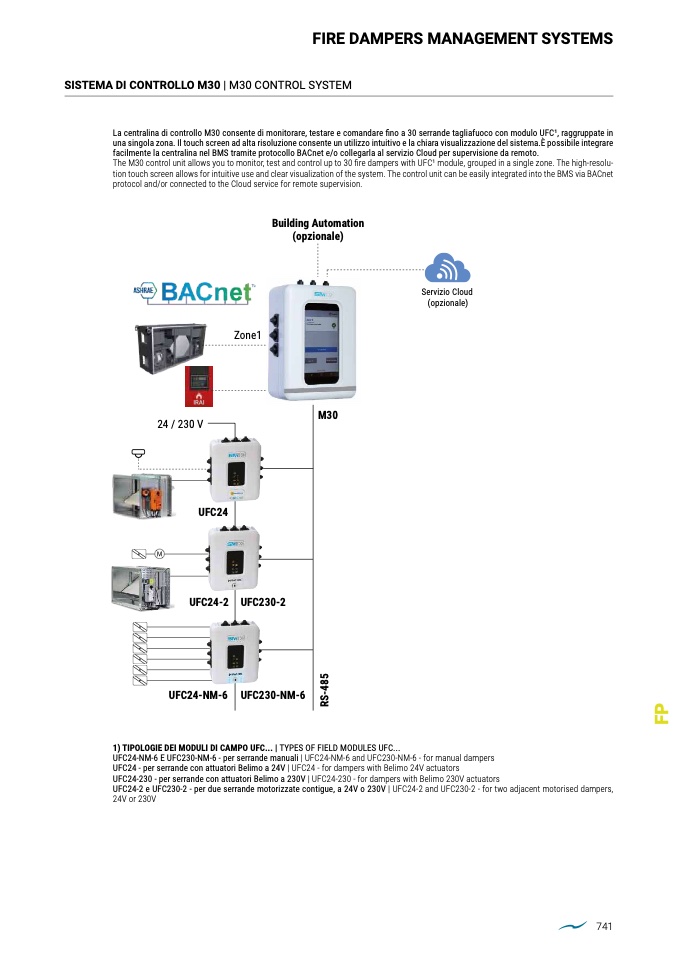

FIRE DAMPERS MANAGEMENT SYSTEMS

SISTEMA DI CONTROLLO M30 | M30 CONTROL SYSTEM

La centralina di controllo M30 consente di monitorare, testare e comandare

fino a 30 serrande tagliafuoco con modulo UFC1, raggruppate in

una singola zona. Il touch screen ad alta risoluzione consente un utilizzo intuitivo e la chiara visualizzazione del sistema.

È possibile integrare

facilmente la centralina nel BMS tramite protocollo BACnet e/o collegarla al servizio Cloud per supervisione da remoto.

The M30 control unit allows you to monitor, test and control up to 30

fire dampers with UFC1 module, grouped in a single zone. The high-resolu-

tion touch screen allows for intuitive use and clear visualization of the system. The control unit can be easily integrated into the BMS via BACnet

protocol and/or connected to the Cloud service for remote supervision.

1) TIPOLOGIE DEI MODULI DI CAMPO UFC... | TYPES OF FIELD MODULES UFC...

UFC24-NM-6 E UFC230-NM-6 - per serrande manuali | UFC24-NM-6 and UFC230-NM-6 - for manual dampers

UFC24 - per serrande con attuatori Belimo a 24V | UFC24 - for dampers with Belimo 24V actuators

UFC24-230 - per serrande con attuatori Belimo a 230V | UFC24-230 - for dampers with Belimo 230V actuators

UFC24-2 e UFC230-2 - per due serrande motorizzate contigue, a 24V o 230V | UFC24-2 and UFC230-2 - for two adjacent motorised dampers,

24V or 230V
