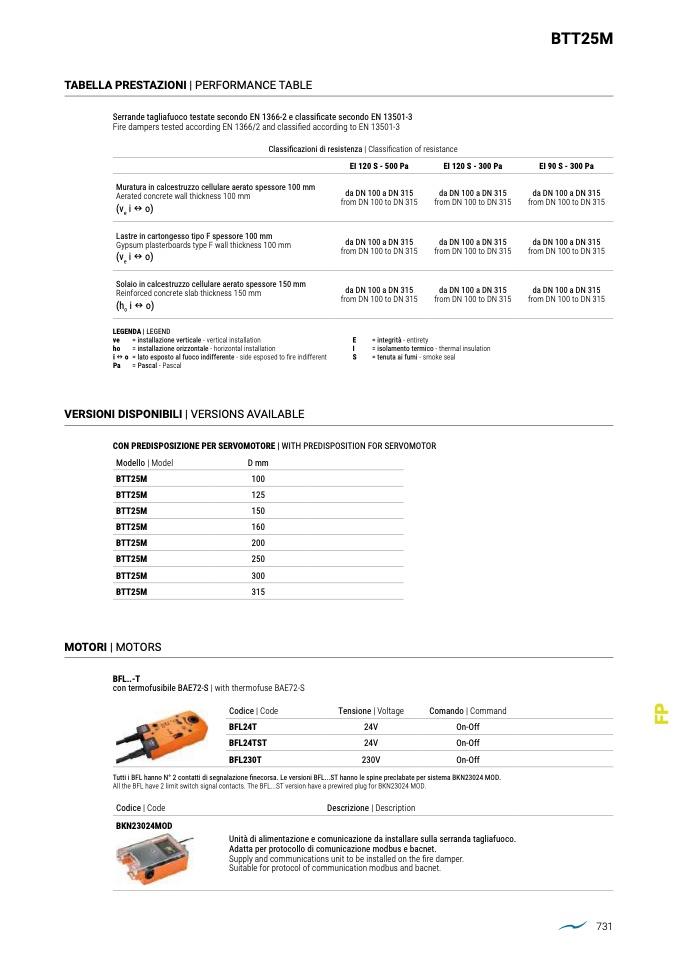

TABELLA PRESTAZIONI | PERFORMANCE TABLE

Serrande tagliafuoco testate secondo EN 1366-2 e classi

ficate secondo EN 13501-3

Fire dampers tested according EN 1366/2 and classified according to EN 13501-3

Classificazioni di resistenza | Classification of resistance

Muratura in calcestruzzo cellulare aerato spessore 100 mm

Aerated concrete wall thickness 100 mm

(v

e

io)

Lastre in cartongesso tipo F spessore 100 mm

Gypsum plasterboards type F wall thickness 100 mm

(v

e

io)

Solaio in calcestruzzo cellulare aerato spessore 150 mm

Reinforced concrete slab thickness 150 mm

(h

o

io)

LEGENDA | LEGEND

ve = installazione verticale - vertical installation

ho = installazione orizzontale - horizontal installation

i  o = lato esposto al fuoco indifferente - side esposed to fire indifferent

Pa = Pascal - Pascal

EI 120 S - 500 Pa

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

EI 120 S - 300 Pa

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

EI 90 S - 300 Pa

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

da DN 100 a DN 315

from DN 100 to DN 315

VERSIONI DISPONIBILI | VERSIONS AVAILABLE

CON PREDISPOSIZIONE PER SERVOMOTORE | WITH PREDISPOSITION FOR SERVOMOTOR

Modello | Model

BTT25M

BTT25M

BTT25M

BTT25M

BTT25M

BTT25M

BTT25M

BTT25M

MOTORI | MOTORS

BFL..-T

D mm

100

125

150

160

200

250

300

315

con termofusibile BAE72-S | with thermofuse BAE72-S

Codice | Code

BFL24T

BFL24TST

BFL230T

Tensione | Voltage

24V

24V

230V

Comando | Command

On-Off

On-Off

On-Off

Tutti i BFL hanno N° 2 contatti di segnalazione

finecorsa. Le versioni BFL...ST hanno le spine preclabate per sistema BKN23024 MOD.

All the BFL have 2 limit switch signal contacts. The BFL...ST version have a prewired plug for BKN23024 MOD.

Codice | Code

BKN23024MOD

Descrizione | Description

Unità di alimentazione e comunicazione da installare sulla serranda tagliafuoco.

Adatta per protocollo di comunicazione modbus e bacnet.

Supply and communications unit to be installed on the

fire damper.

Suitable for protocol of communication modbus and bacnet.

E

= integrit

à - entirety

I

= isolamento termico - thermal insulation

S

= tenuta ai fumi - smoke seal

BTT25M

731

F

P
