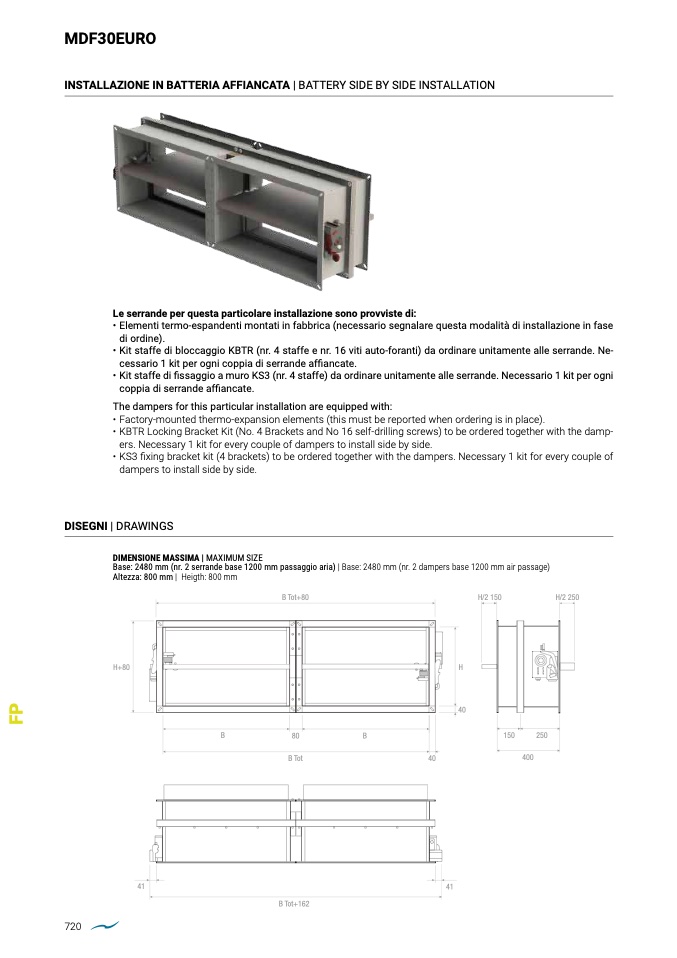

MDF30EURO

INSTALLAZIONE IN BATTERIA AFFIANCATA | BATTERY SIDE BY SIDE INSTALLATION

720

Le serrande per questa particolare installazione sono provviste di:

• Elementi termo-espandenti montati in fabbrica (necessario segnalare questa modalit

à di installazione in fase

di ordine).

• Kit staffe di bloccaggio KBTR (nr. 4 staffe e nr. 16 viti auto-foranti) da ordinare unitamente alle serrande. Ne-

cessario 1 kit per ogni coppia di serrande af

fiancate.

• Kit staffe di

fissaggio a muro KS3 (nr. 4 staffe) da ordinare unitamente alle serrande. Necessario 1 kit per ogni

coppia di serrande affiancate.

The dampers for this particular installation are equipped with:

• Factory-mounted thermo-expansion elements (this must be reported when ordering is in place).

• KBTR Locking Bracket Kit (No. 4 Brackets and No 16 self-drilling screws) to be ordered together with the damp-

ers. Necessary 1 kit for every couple of dampers to install side by side.

• KS3 fixing bracket kit (4 brackets) to be ordered together with the dampers. Necessary 1 kit for every couple of

dampers to install side by side.

DISEGNI | DRAWINGS

DIMENSIONE MASSIMA | MAXIMUM SIZE

Base: 2480 mm (nr. 2 serrande base 1200 mm passaggio aria) | Base: 2480 mm (nr. 2 dampers base 1200 mm air passage)

Altezza: 800 mm | Heigth: 800 mm

H+80

H

40

41

41

B Tot+80

H/2 150

H/2 250

250

B Tot

40

400

B Tot+162

150

B

80

B

F

P
