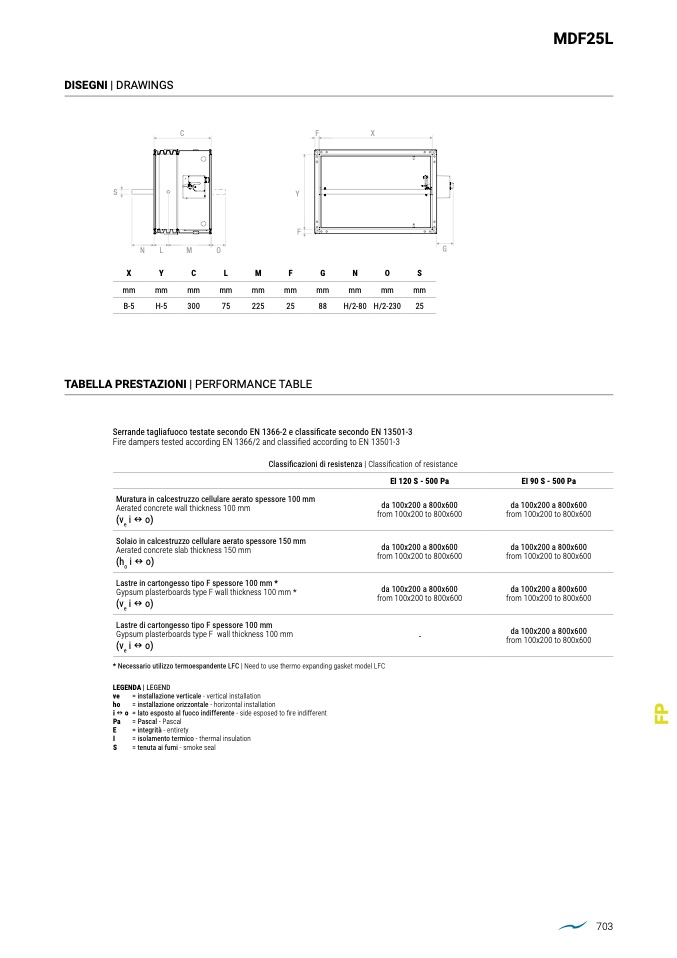

DISEGNI | DRAWINGS

S

Y

F

C

F

X

N

L

M

O

G

X

Y

C

L

M

F

G

N

O

S

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

B-5

H-5

300

75

225

25

88

H/2-80 H/2-230 25

TABELLA PRESTAZIONI | PERFORMANCE TABLE

Serrande tagliafuoco testate secondo EN 1366-2 e classificate secondo EN 13501-3

Fire dampers tested according EN 1366/2 and classi

fied according to EN 13501-3

Classificazioni di resistenza | Classification of resistance

EI 120 S - 500 Pa

Muratura in calcestruzzo cellulare aerato spessore 100 mm

Aerated concrete wall thickness 100 mm

da 100x200 a 800x600

from 100x200 to 800x600

(v

e

io)

Solaio in calcestruzzo cellulare aerato spessore 150 mm

Aerated concrete slab thickness 150 mm

da 100x200 a 800x600

from 100x200 to 800x600

(h

o

io)

Lastre in cartongesso tipo F spessore 100 mm *

Gypsum plasterboards type F wall thickness 100 mm *

da 100x200 a 800x600

from 100x200 to 800x600

(v

e

io)

Lastre di cartongesso tipo F spessore 100 mm

Gypsum plasterboards type F wall thickness 100 mm

-

(v

e

io)

* Necessario utilizzo termoespandente LFC | Need to use thermo expanding gasket model LFC

LEGENDA | LEGEND

ve

= installazione verticale - vertical installation

ho

= installazione orizzontale - horizontal installation

i  o

= lato esposto al fuoco indifferente - side esposed to fire indifferent

Pa

= Pascal - Pascal

E

= integrità - entirety

I

= isolamento termico - thermal insulation

S

= tenuta ai fumi - smoke seal

EI 90 S - 500 Pa

da 100x200 a 800x600

from 100x200 to 800x600

da 100x200 a 800x600

from 100x200 to 800x600

da 100x200 a 800x600

from 100x200 to 800x600

da 100x200 a 800x600

from 100x200 to 800x600

MDF25L
