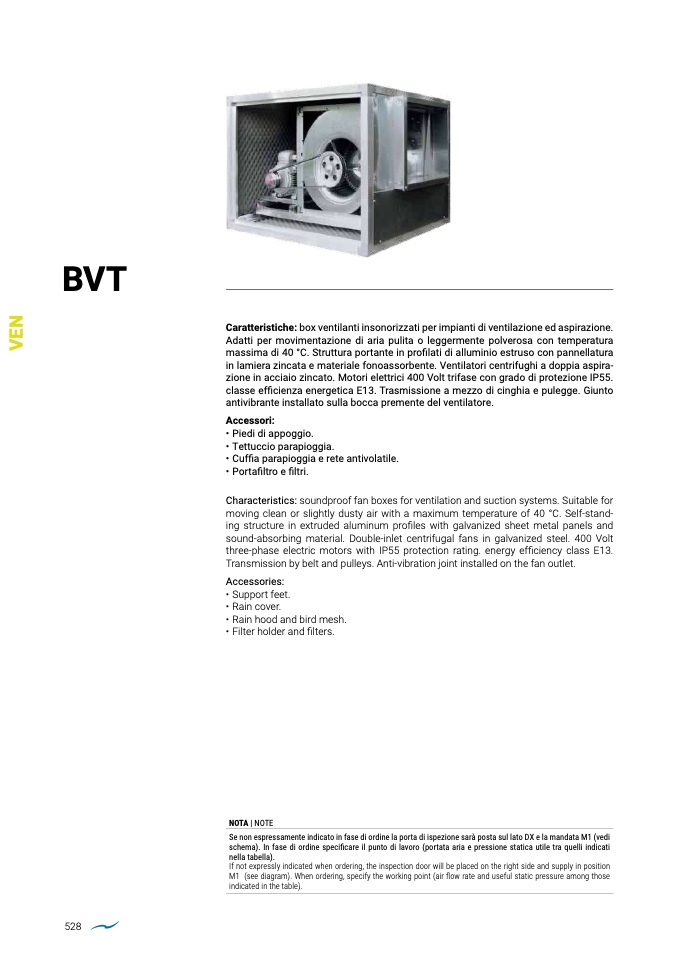

BVT

528

Caratteristiche: box ventilanti insonorizzati per impianti di ventilazione ed aspirazione.

Adatti per movimentazione di aria pulita o leggermente polverosa con temperatura

massima di 40 °C. Struttura portante in pro

filati di alluminio estruso con pannellatura

in lamiera zincata e materiale fonoassorbente. Ventilatori centrifughi a doppia aspira-

zione in acciaio zincato. Motori elettrici 400 Volt trifase con grado di protezione IP55.

classe ef

ficienza energetica E13. Trasmissione a mezzo di cinghia e pulegge. Giunto

antivibrante installato sulla bocca premente del ventilatore.

Accessori:

• Piedi di appoggio.

• Tettuccio parapioggia.

• Cuf

fia parapioggia e rete antivolatile.

• Porta

filtro e filtri.

Characteristics: soundproof fan boxes for ventilation and suction systems. Suitable for

moving clean or slightly dusty air with a maximum temperature of 40 °C. Self-stand-

ing structure in extruded aluminum profiles with galvanized sheet metal panels and

sound-absorbing material. Double-inlet centrifugal fans in galvanized steel. 400 Volt

three-phase electric motors with IP55 protection rating. energy ef

ficiency class E13.

Transmission by belt and pulleys. Anti-vibration joint installed on the fan outlet.

Accessories:

• Support feet.

• Rain cover.

• Rain hood and bird mesh.

• Filter holder and filters.

NOTA | NOTE

Se non espressamente indicato in fase di ordine la porta di ispezione sarà posta sul lato DX e la mandata M1 (vedi

schema). In fase di ordine speci

ficare il punto di lavoro (portata aria e pressione statica utile tra quelli indicati

nella tabella).

If not expressly indicated when ordering, the inspection door will be placed on the right side and supply in position

M1 (see diagram). When ordering, specify the working point (air flow rate and useful static pressure among those

indicated in the table).
