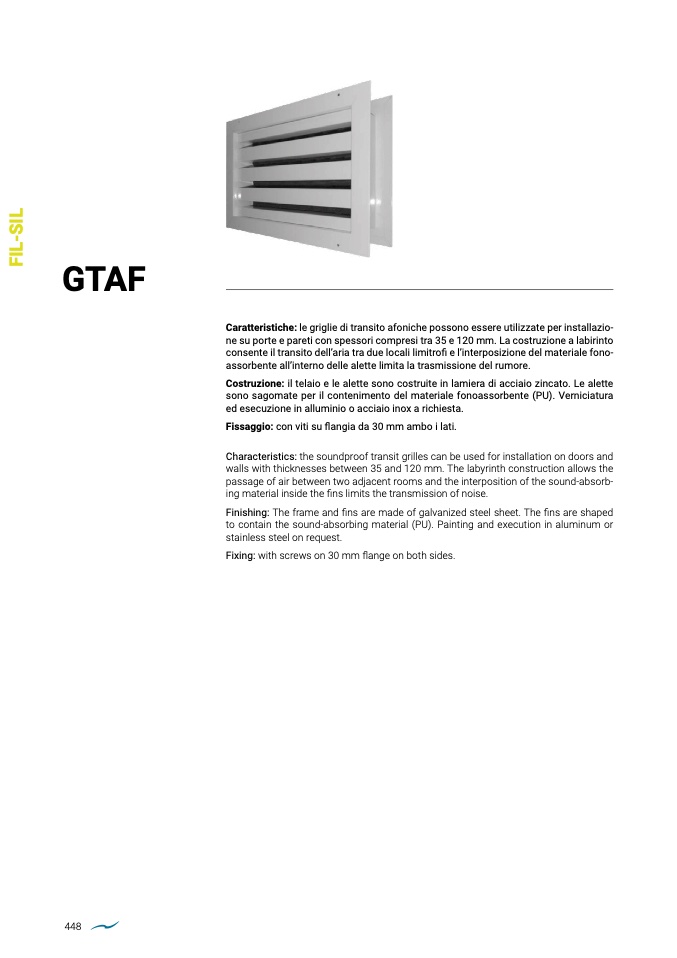

GTAF

448

Caratteristiche: le griglie di transito afoniche possono essere utilizzate per installazio-

ne su porte e pareti con spessori compresi tra 35 e 120 mm. La costruzione a labirinto

consente il transito dell’aria tra due locali limitro

fi e l’interposizione del materiale fono-

assorbente all’interno delle alette limita la trasmissione del rumore.

Costruzione: il telaio e le alette sono costruite in lamiera di acciaio zincato. Le alette

sono sagomate per il contenimento del materiale fonoassorbente (PU). Verniciatura

ed esecuzione in alluminio o acciaio inox a richiesta.

Fissaggio: con viti su flangia da 30 mm ambo i lati.

Characteristics: the soundproof transit grilles can be used for installation on doors and

walls with thicknesses between 35 and 120 mm. The labyrinth construction allows the

passage of air between two adjacent rooms and the interposition of the sound-absorb-

ing material inside the

fins limits the transmission of noise.

Finishing: The frame and fins are made of galvanized steel sheet. The

fins are shaped

to contain the sound-absorbing material (PU). Painting and execution in aluminum or

stainless steel on request.

Fixing: with screws on 30 mm

flange on both sides.
