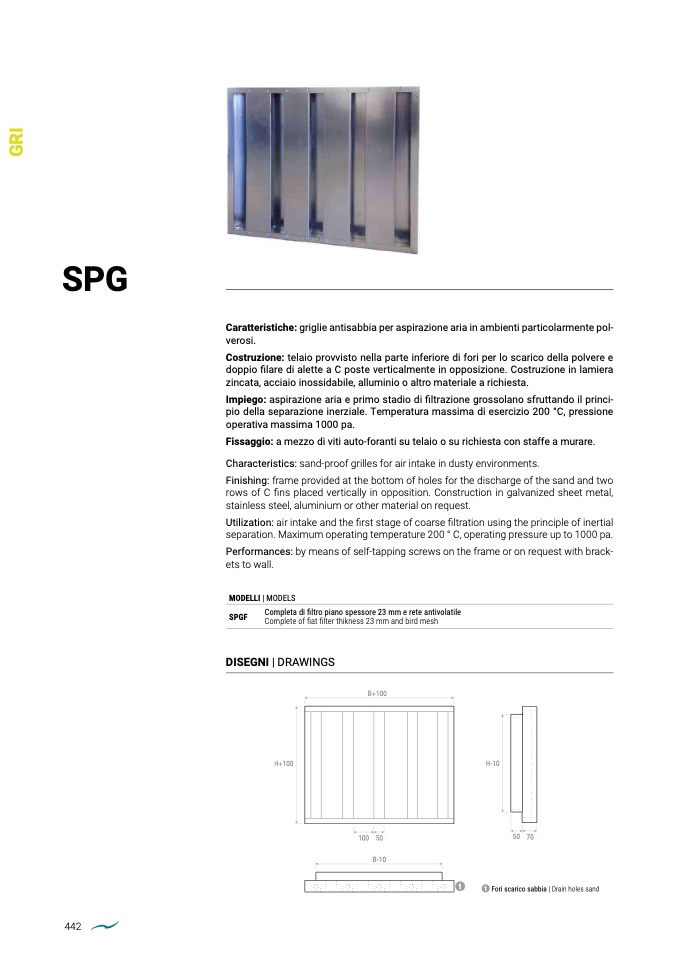

SPG

442

Caratteristiche: griglie antisabbia per aspirazione aria in ambienti particolarmente pol-

verosi.

Costruzione: telaio provvisto nella parte inferiore di fori per lo scarico della polvere e

doppio filare di alette a C poste verticalmente in opposizione. Costruzione in lamiera

zincata, acciaio inossidabile, alluminio o altro materiale a richiesta.

Impiego: aspirazione aria e primo stadio di filtrazione grossolano sfruttando il princi-

pio della separazione inerziale. Temperatura massima di esercizio 200 °C, pressione

operativa massima 1000 pa.

Fissaggio: a mezzo di viti auto-foranti su telaio o su richiesta con staffe a murare.

Characteristics: sand-proof grilles for air intake in dusty environments.

Finishing: frame provided at the bottom of holes for the discharge of the sand and two

rows of C

fins placed vertically in opposition. Construction in galvanized sheet metal,

stainless steel, aluminium or other material on request.

Utilization: air intake and the

first stage of coarse filtration using the principle of inertial

separation. Maximum operating temperature 200 ° C, operating pressure up to 1000 pa.

Performances: by means of self-tapping screws on the frame or on request with brack-

ets to wall.

MODELLI | MODELS

Completa di filtro piano spessore 23 mm e rete antivolatile

Complete of

fiat filter thikness 23 mm and bird mesh

SPGF

DISEGNI | DRAWINGS

H+100

H+100H+100

B+100

B+100B+100

100 50

100 1500 50

B-10

B-10 B-10

H-10

1

1

1

1

Fori scarico sabbia | Drain holes sand

5 70

50 7050 70

0

H-

H-

10

10
