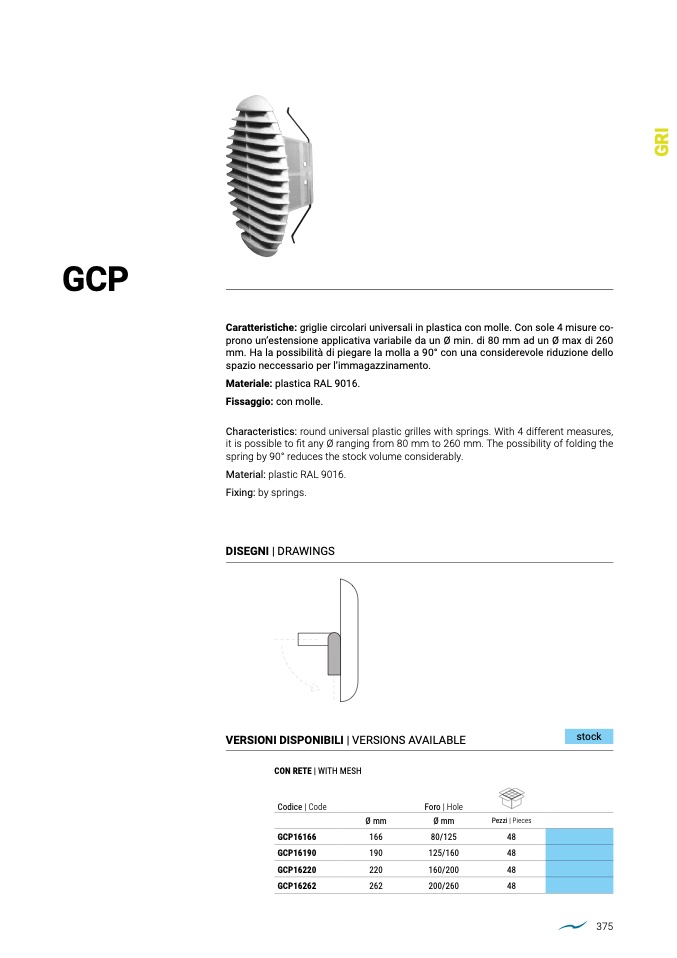

GCP

Caratteristiche: griglie circolari universali in plastica con molle. Con sole 4 misure co-

prono un’estensione applicativa variabile da un Ø min. di 80 mm ad un Ø max di 260

mm. Ha la possibilit

à di piegare la molla a 90° con una considerevole riduzione dello

spazio neccessario per l’immagazzinamento.

Materiale: plastica RAL 9016.

Fissaggio: con molle.

Characteristics: round universal plastic grilles with springs. With 4 different measures,

it is possible to fit any Ø ranging from 80 mm to 260 mm. The possibility of folding the

spring by 90° reduces the stock volume considerably.

Material: plastic RAL 9016.

Fixing: by springs.

DISEGNI | DRAWINGS

VERSIONI DISPONIBILI | VERSIONS AVAILABLE

CON RETE | WITH MESH

Codice | Code

GCP16166

GCP16190

GCP16220

GCP16262

Ø mm

166

190

220

262

Foro | Hole

Ø mm

80/125

125/160

160/200

200/260

Pezzi | Pieces

48

48

48

48

375
