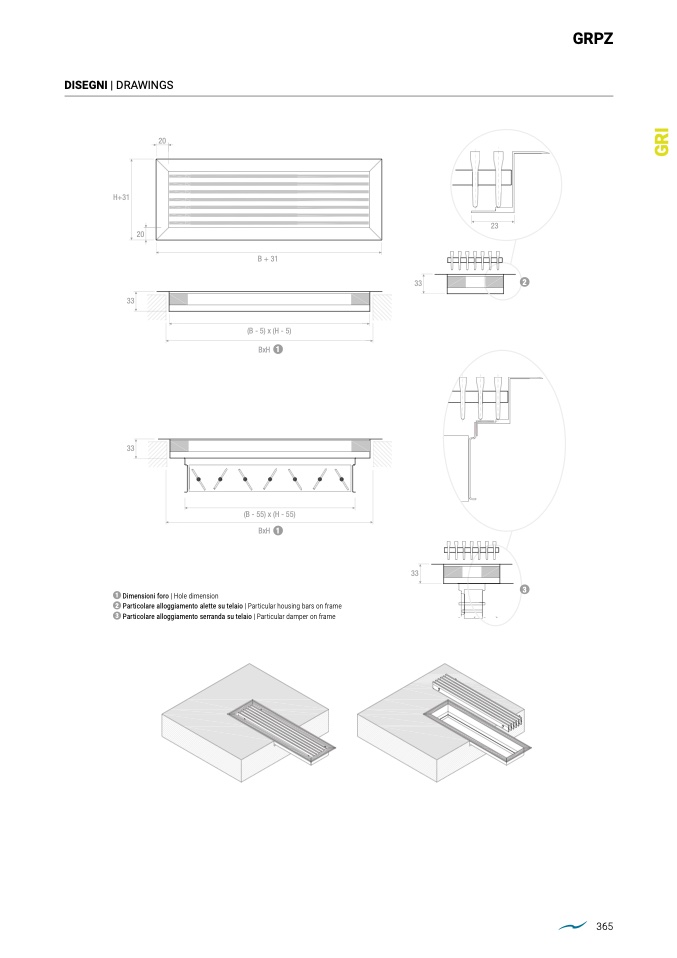

DISEGNI | DRAWINGS

20

H+31

20

33

33

B + 31

(B - 5) x (H - 5)

BxH 1

23

33

2

1 Dimensioni foro | Hole dimension

2 Particolare alloggiamento alette su telaio | Particular housing bars on frame

3 Particolare alloggiamento serranda su telaio | Particular damper on frame

3

(B - 55) x (H - 55)

BxH 1

33
