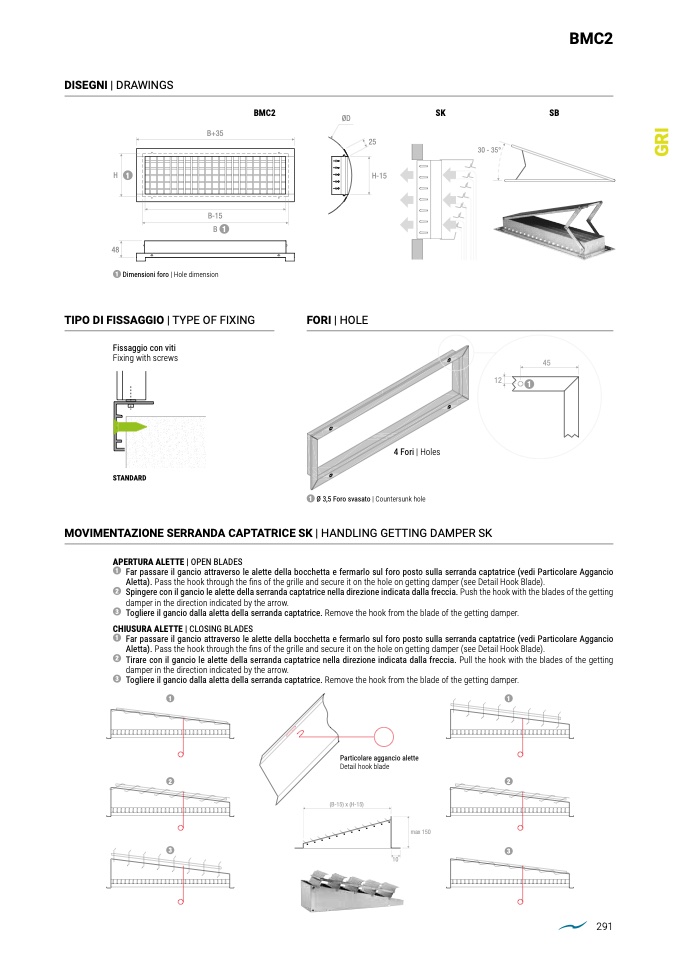

DISEGNI | DRAWINGS

H

48

1

B+35

B-15

B1

Dimensioni foro | Hole dimension

25

H-15

30 - 350°- 35°

TIPO DI FISSAGGIO | TYPE OF FIXING

FORI | HOLE

Fissaggio con viti

Fixing with screws

STANDARD

45

12

BMC2

ØD

HxB HxB

1

1

SK

SB

MOVIMENTAZIONE SERRANDA CAPTATRICE SK | HANDLING GETTING DAMPER SK

CT

1

4 Fori | Holes CT

Ø 3,5 Foro svasato | Countersunk hole

CTKC

APERTURA ALETTE | OPEN BLADES

1

Far passare il gancio attraverso le alette della bocchetta e fermarlo sul foro posto sulla serranda captatrice (vedi Particolare Aggancio

Aletta). Pass the hook through the

fins of the grille and secure it on the hole on getting damper (see Detail Hook Blade).

2

Spingere con il gancio le alette della serranda captatrice nella direzione indicata dalla freccia. Push the hook with the blades of the getting

damper in the direction indicated by the arrow.

3

Togliere il gancio dalla aletta della serranda captatrice. Remove the hook from the blade of the getting damper.

CHIUSURA ALETTE | CLOSING BLADES

1

Far passare il gancio attraverso le alette della bocchetta e fermarlo sul foro posto sulla serranda captatrice (vedi Particolare Aggancio

Aletta). Pass the hook through the

fins of the grille and secure it on the hole on getting damper (see Detail Hook Blade).

2

Tirare con il gancio le alette della serranda captatrice nella direzione indicata dalla freccia. Pull the hook with the blades of the getting

damper in the direction indicated by the arrow.

3

Togliere il gancio dalla aletta della serranda captatrice. Remove the hook from the blade of the getting damper.

1

1

Particolare aggancio alette

Detail hook blade

2

2

(B-15) x (H-15)

max 150

3

3

10

1

BMC2
