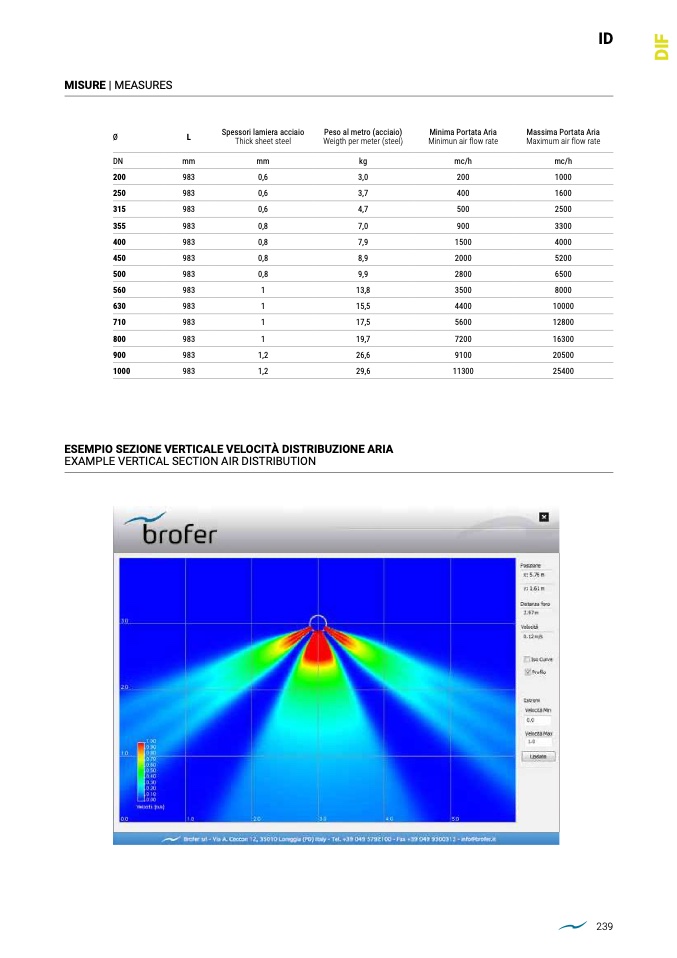

MISURE | MEASURES

Ø

L

DN

mm

200

983

250

983

315

983

355

983

400

983

450

983

500

983

560

983

630

983

710

983

800

983

900

983

1000

983

Spessori lamiera acciaio

Thick sheet steel

mm

0,6

0,6

0,6

0,8

0,8

0,8

0,8

1

1

1

1

1,2

1,2

Peso al metro (acciaio)

Weigth per meter (steel)

kg

3,0

3,7

4,7

7,0

7,9

8,9

9,9

13,8

15,5

17,5

19,7

26,6

29,6

Minima Portata Aria

Minimun air flow rate

mc/h

200

400

500

900

1500

2000

2800

3500

4400

5600

7200

9100

11300

Massima Portata Aria

Maximum air flow rate

mc/h

1000

1600

2500

3300

4000

5200

6500

8000

10000

12800

16300

20500

25400

ESEMPIO SEZIONE VERTICALE VELOCIT

À DISTRIBUZIONE ARIA

EXAMPLE VERTICAL SECTION AIR DISTRIBUTION
