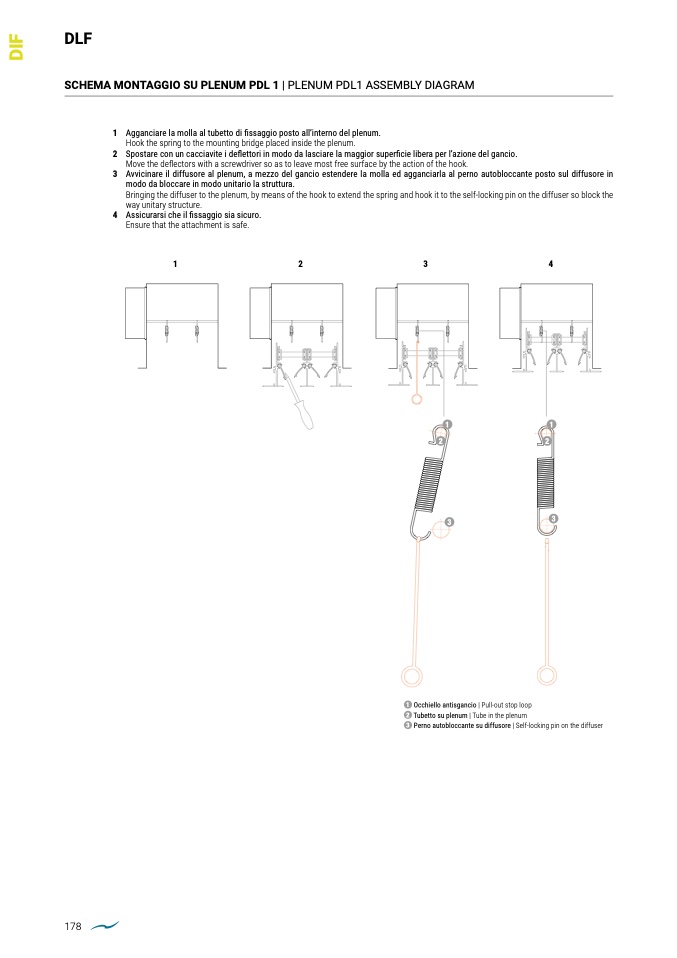

SCHEMA MONTAGGIO SU PLENUM PDL 1 | PLENUM PDL1 ASSEMBLY DIAGRAM

1 Agganciare la molla al tubetto di

fissaggio posto all’interno del plenum.

Hook the spring to the mounting bridge placed inside the plenum.

2 Spostare con un cacciavite i deflettori in modo da lasciare la maggior superficie libera per l’azione del gancio.

Move the deflectors with a screwdriver so as to leave most free surface by the action of the hook.

3 Avvicinare il diffusore al plenum, a mezzo del gancio estendere la molla ed agganciarla al perno autobloccante posto sul diffusore in

modo da bloccare in modo unitario la struttura.

Bringing the diffuser to the plenum, by means of the hook to extend the spring and hook it to the self-locking pin on the diffuser so block the

way unitary structure.

4 Assicurarsi che il

fissaggio sia sicuro.

Ensure that the attachment is safe.

1

2

3

4

178

1

1

2

2

3

3

1 Occhiello antisgancio | Pull-out stop loop

2 Tubetto su plenum | Tube in the plenum

3 Perno autobloccante su diffusore | Self-locking pin on the diffuser
