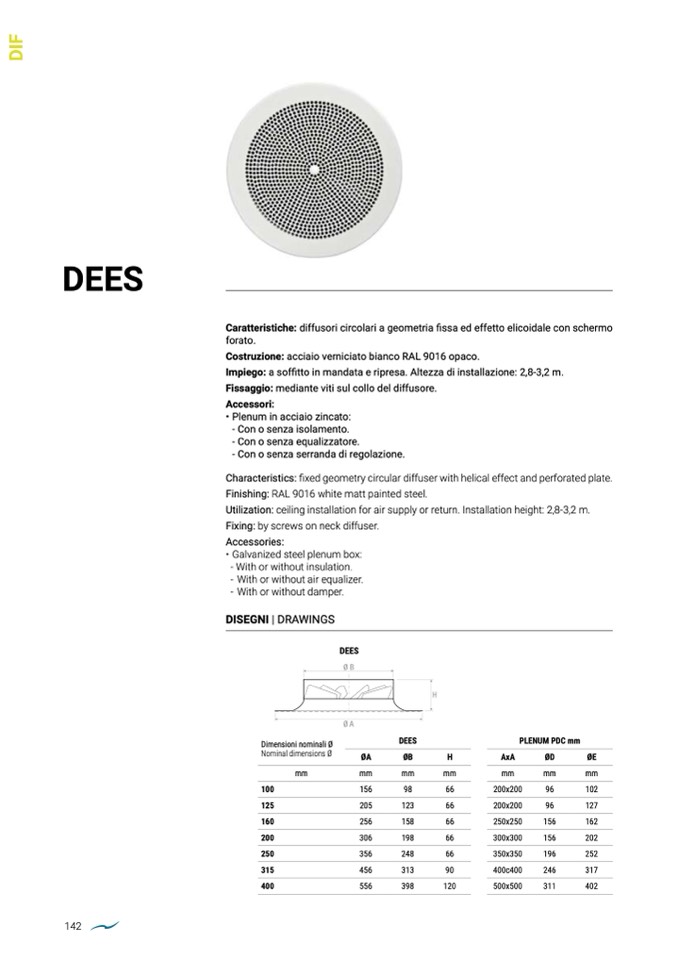

DEES

142

Caratteristiche: diffusori circolari a geometria fissa ed effetto elicoidale con schermo

forato.

Costruzione: acciaio verniciato bianco RAL 9016 opaco.

Impiego: a soffitto in mandata e ripresa. Altezza di installazione: 2,8-3,2 m.

Fissaggio: mediante viti sul collo del diffusore.

Accessori:

• Plenum in acciaio zincato:

- Con o senza isolamento.

- Con o senza equalizzatore.

- Con o senza serranda di regolazione.

Characteristics: fixed geometry circular diffuser with helical effect and perforated plate.

Finishing: RAL 9016 white matt painted steel.

Utilization: ceiling installation for air supply or return. Installation height: 2,8-3,2 m.

Fixing: by screws on neck diffuser.

Accessories:

• Galvanized steel plenum box:

- With or without insulation.

- With or without air equalizer.

- With or without damper.

DISEGNI | DRAWINGS

DEES

ØB

ØA

H

Dimensioni nominali Ø

Nominal dimensions Ø

DEES

PLENUM PDC mm

AxA

ØD

ØE

mm

mm

mm

200x200

96

102

200x200

96

127

250x250

156

162

300x300

156

202

350x350

196

252

400c400

246

317

500x500

311

402

100

125

160

200

250

315

400

120

mm

mm

mm

156

98

205

123

256

158

306

198

356

248

456

313

556

398

mm

66

66

66

66

66

90

ØA

ØB

H
