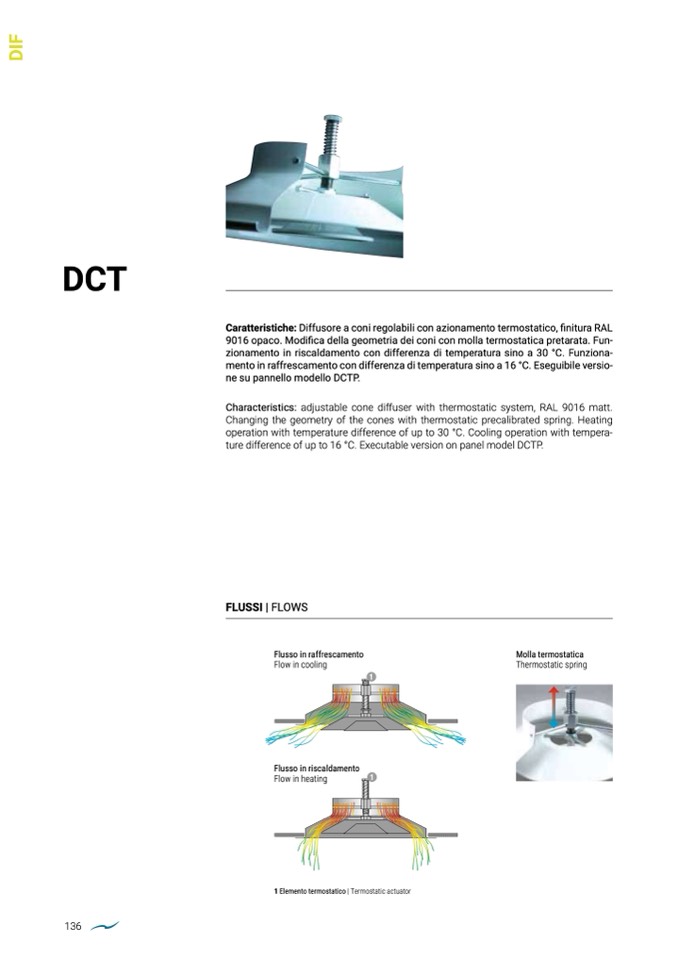

DCT

136

1

Caratteristiche: Diffusore a coni regolabili con azionamento termostatico,

finitura RAL

9016 opaco. Modifica della geometria dei coni con molla termostatica pretarata. Fun-

zionamento in riscaldamento con differenza di temperatura sino a 30 °C. Funziona-

mento in raffrescamento con differenza di temperatura sino a 16 °C. Eseguibile versio-

ne su pannello modello DCTP.

Characteristics: adjustable cone diffuser with thermostatic system, RAL 9016 matt.

Changing the geometry of the cones with thermostatic precalibrated spring. Heating

operation with temperature difference of up to 30 °C. Cooling operation with tempera-

ture difference of up to 16 °C. Executable version on panel model DCTP.

FLUSSI | FLOWS

Flusso in raffrescamento

Flow in cooling

Flusso in riscaldamento

Flow in heating

Molla termostatica

Thermostatic spring

1

1 Elemento termostatico | Termostatic actuator
