ORIENT

TM

DESIGNED BY JO HAMMERBORG

PM-02

Design: Paul McCobb, 1950

INSTALLATION

INSTRUCTIONS

ORIENT

TM

P1 / P2 / P3

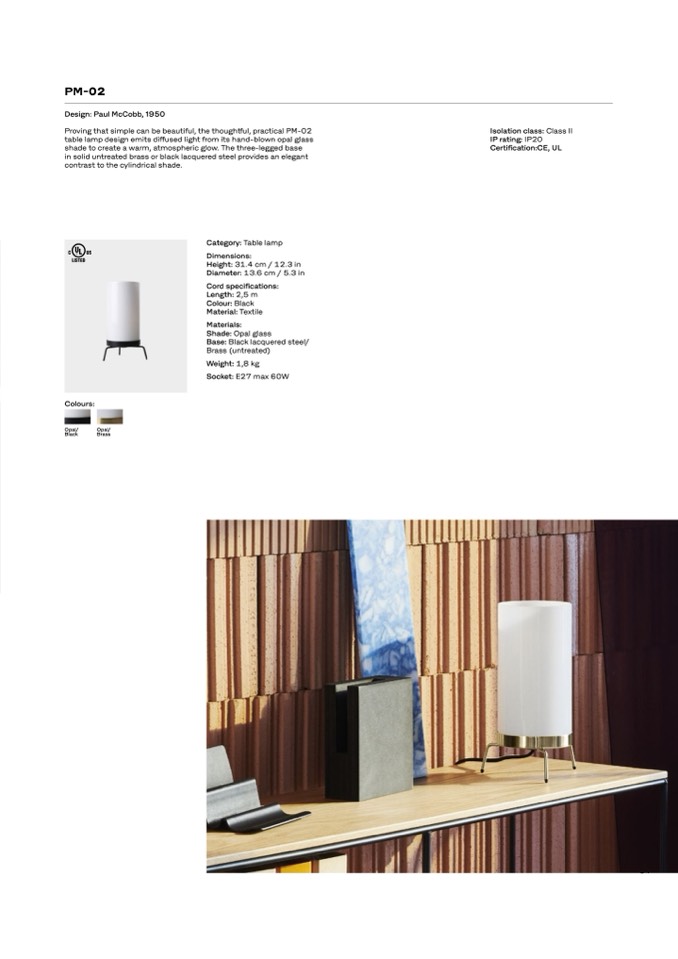

Proving that simple can be beautiful, the thoughtful, practical PM-02

table lamp design emits diffused light from its hand-blown opal glass

shade to create a warm, atmospheric glow. The three-legged base

in solid untreated brass or black lacquered steel provides an elegant

contrast to the cylindrical shade.

ø225 mm

ø340 mm

ø500 mm

P1

P2

P3

Isolation class: Class II

IP rating: IP20

Certification:CE, UL

Light source:

E26 max 60W

Weight:

0.6 kg/1.0 lbs

Light source:

E26 max 75W

Weight:

1.0 kg/2.0 lbs

Light source:

Category: Table lamp

Weight:

Dimensions:

Height: 31.4 cm / 12.3 in

Diameter: 13.6 cm / 5.3 in

Cord specifications:

Length: 2,5 m

Colour: Black

Material: Textile

Materials:

Shade: Opal glass

Base: Black lacquered steel/

Brass (untreated)

E26 max 100W

07/2018 ·

PAGE 1/2

Colours:

Opal/

Opal/

Black

Brass

5

6

1.9 kg/4.2 lbs

2

3

4

Weight: 1,8 kg

Socket: E27 max 60W

5

OUR “RECOMMENDED LIGHT SOURCES” ARE AVAILABLE ON: DOWNLOADS.FRITZHANSEN.COM
