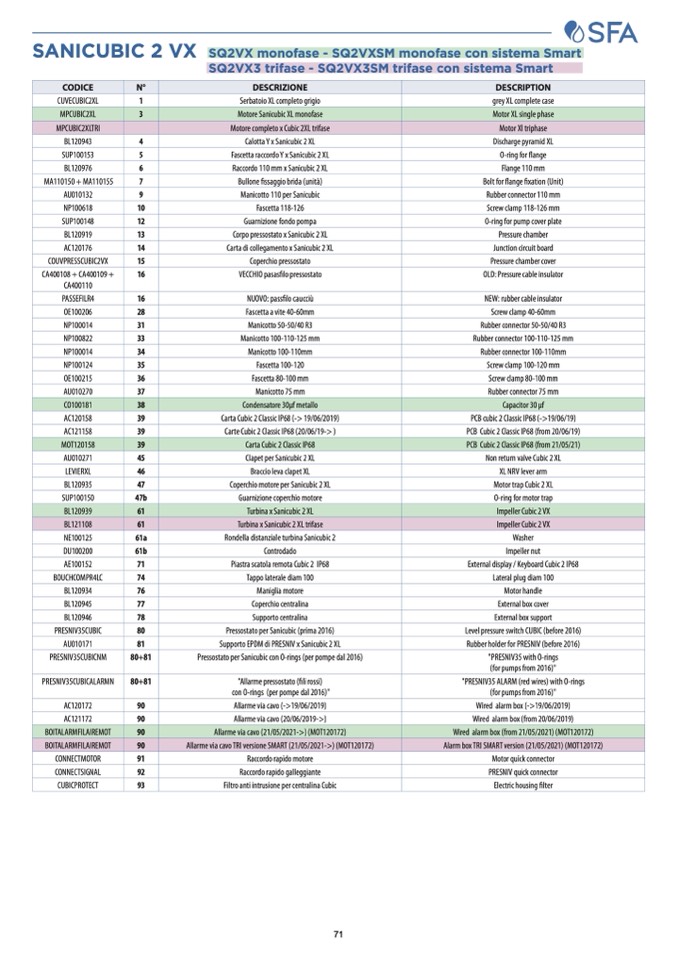

SANICUBIC 2 VX SQ2VX monofase - SQ2VXSM monofase con sistema Smart

SQ2VX3 trifase - SQ2VX3SM trifase con sistema Smar

t

CODICE

N°

DESCRIZIONE

DESCRIPTION

CUVECUBIC2XL

1

Serbatoio XL completo grigio

grey XL complete case

MPCUBIC2XL

3

Motore Sanicubic XL monofase

Motor XL single phas

e

MPCUBIC2XLTRI

Motore completo x Cubic 2XL trifase

Motor Xl triphas

e

BL120943

4

Calotta Y x Sanicubic 2 XL

Discharge pyramid XL

SUP100153

5

Fascetta raccordo Y x Sanicubic 2 XL

O-ring for

flange

BL120976

6

Raccordo 110 mm x Sanicubic 2 XL

Flange 110 m

m

MA110150 + MA110155

7

Bullone

fissaggio brida (unità)

Bolt for flange

fixation (Unit

)

AU010132

9

Manicotto 110 per Sanicubic

Rubber connector 110 m

m

NP100618

10

Fascetta 118-126

Screw clamp 118-126 mm

SUP100148

12

Guarnizione fondo pompa

O-ring for pump cover plat

e

BL120919

13

Corpo pressostato x Sanicubic 2 XL

Pressure chamber

AC120176

14

Carta di collegamento x Sanicubic 2 XL

Junction circuit board

COUVPRESSCUBIC2VX

15

Coperchio pressostato

Pressure chamber cove

r

CA400108 + CA400109 +

CA40011

0

16

VECCHIO pasas

filo pressostato

OLD: Pressure cable insulator

PASSEFILR4

16

NUOVO: pass

filo caucciù

NEW: rubber cable insulato

r

OE100206

28

Fascetta a vite 40-60mm

Screw clamp 40-60mm

NP100014

31

Manicotto 50-50/40 R3

Rubber connector 50-50/40 R

3

NP100822

33

Manicotto 100-110-125 mm

Rubber connector 100-110-125 m

m

NP100014

34

Manicotto 100-110mm

Rubber connector 100-110mm

NP100124

35

Fascetta 100-120

Screw clamp 100-120 mm

OE100215

36

Fascetta 80-100 mm

Screw clamp 80-100 m

m

AU010270

37

Manicotto 75 mm

Rubber connector 75 mm

CO100181

38

Condensatore 30µf metallo

Capacitor 30 µf

AC120158

39

Carta Cubic 2 Classic IP68 (-> 19/06/2019)

PCB cubic 2 Classic IP68 (->19/06/19

)

AC121158

39

Carte Cubic 2 Classic IP68 (20/06/19-> )

PCB Cubic 2 Classic IP68 (from 20/06/19)

MOT120158

39

Carta Cubic 2 Classic IP68

PCB Cubic 2 Classic IP68 (from 21/05/21)

AU010271

45

Clapet per Sanicubic 2 XL

Non return valve Cubic 2 XL

LEVIERXL

46

Braccio leva clapet XL

XL NRV lever arm

BL120935

47

Coperchio motore per Sanicubic 2 XL

Motor trap Cubic 2 XL

SUP100150

47b

Guarnizione coperchio motore

O-ring for motor trap

BL120939

61

Turbina x Sanicubic 2 XL

Impeller Cubic 2 V

X

BL121108

61

Turbina x Sanicubic 2 XL trifase

Impeller Cubic 2 V

X

NE100125

61a

Rondella distanziale turbina Sanicubic 2

Washe

r

DU100200

61b

Controdado

Impeller nut

AE100152

71

Piastra scatola remota Cubic 2 IP68

External display / Keyboard Cubic 2 IP68

BOUCHCOMPR4LC

74

Tappo laterale diam 100

Lateral plug diam 100

BL120934

76

Maniglia motore

Motor handle

BL120945

77

Coperchio centralina

External box cover

BL120946

78

Supporto centralina

External box support

PRESNIV35CUBIC

80

Pressostato per Sanicubic (prima 2016)

Level pressure switch CUBIC (before 2016)

AU010171

81

Supporto EPDM di PRESNIV x Sanicubic 2 XL

Rubber holder for PRESNIV (before 2016)

PRESNIV35CUBICNM

80+81

Pressostato per Sanicubic con O-rings (per pompe dal 2016)

"PRESNIV35 with O-ring

s

(for pumps from 2016)

"

PRESNIV35CUBICALARMN

80+81

"Allarme pressostato (

fili rossi

)

con O-rings (per pompe dal 2016)"

"PRESNIV35 ALARM (red wires) with O-ring

s

(for pumps from 2016)

"

AC120172

90

Allarme via cavo (->19/06/2019)

Wired alarm box (->19/06/2019)

AC121172

90

Allarme via cavo (20/06/2019->)

Wired alarm box (from 20/06/2019)

BOITALARMFILAIREMOT

90

Allarme via cavo (21/05/2021->) (MOT120172)

Wired alarm box (from 21/05/2021) (MOT120172

)

BOITALARMFILAIREMOT

90

Allarme via cavo TRI versione SMART (21/05/2021->) (MOT120172)

Alarm box TRI SMART version (21/05/2021) (MOT120172)

CONNECTMOTOR

91

Raccordo rapido motore

Motor quick connector

CONNECTSIGNAL

92

Raccordo rapido galleggiante

PRESNIV quick connecto

r

CUBICPROTECT

93

Filtro anti intrusione per centralina Cubic

Electric housing

filte

r
