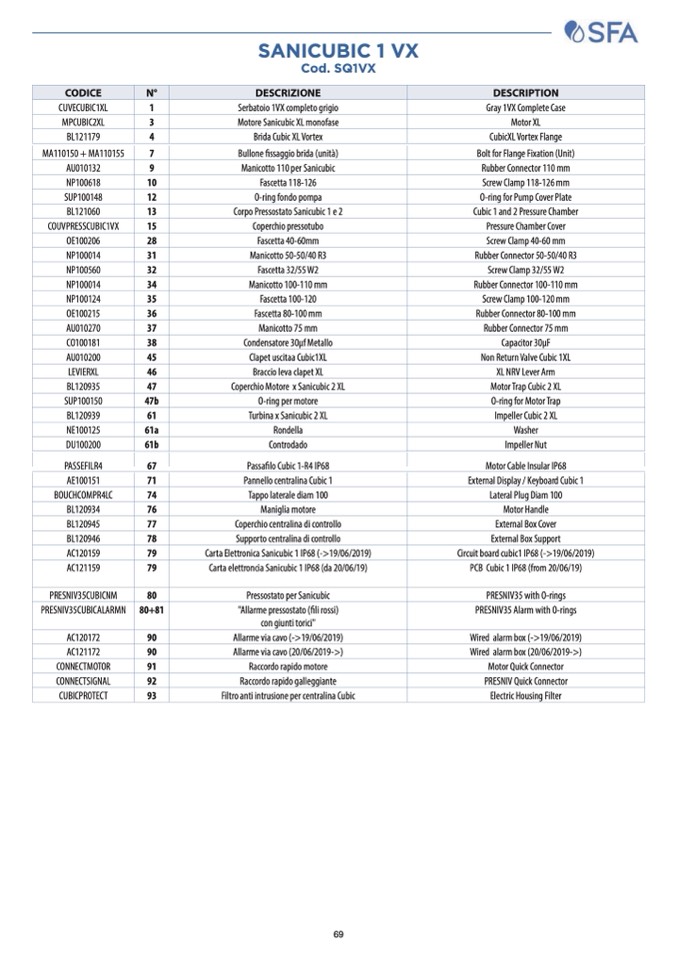

SANICUBIC 1 V

X

Cod. SQ1VX

CODICE

N°

DESCRIZIONE

DESCRIPTION

CUVECUBIC1XL

1

Serbatoio 1VX completo grigio

Gray 1VX Complete Cas

e

MPCUBIC2XL

3

Motore Sanicubic XL monofase

Motor X

L

BL121179

4

Brida Cubic XL Vortex

CubicXL Vortex Flange

MA110150 + MA110155

7

Bullone

fissaggio brida (unità)

Bolt for Flange Fixation (Unit)

AU010132

9

Manicotto 110 per Sanicubic

Rubber Connector 110 mm

NP100618

10

Fascetta 118-126

Screw Clamp 118-126 mm

SUP100148

12

O-ring fondo pompa

O-ring for Pump Cover Plate

BL121060

13

Corpo Pressostato Sanicubic 1 e 2

Cubic 1 and 2 Pressure Chamber

COUVPRESSCUBIC1VX

15

Coperchio pressotubo

Pressure Chamber Cover

OE100206

28

Fascetta 40-60mm

Screw Clamp 40-60 mm

NP100014

31

Manicotto 50-50/40 R3

Rubber Connector 50-50/40 R

3

NP100560

32

Fascetta 32/55 W2

Screw Clamp 32/55 W

2

NP100014

34

Manicotto 100-110 mm

Rubber Connector 100-110 mm

NP100124

35

Fascetta 100-120

Screw Clamp 100-120 m

m

OE100215

36

Fascetta 80-100 mm

Rubber Connector 80-100 mm

AU010270

37

Manicotto 75 mm

Rubber Connector 75 m

m

CO100181

38

Condensatore 30µf Metallo

Capacitor 30µ

F

AU010200

45

Clapet uscitaa Cubic1XL

Non Return Valve Cubic 1XL

LEVIERXL

46

Braccio leva clapet XL

XL NRV Lever Ar

m

BL120935

47

Coperchio Motore x Sanicubic 2 XL

Motor Trap Cubic 2 XL

SUP100150

47b

O-ring per motore

O-ring for Motor Tra

p

BL120939

61

Turbina x Sanicubic 2 XL

Impeller Cubic 2 X

L

NE100125

61a

Rondella

Washer

DU100200

61b

Controdado

Impeller Nut

PASSEFILR4

67

Passa

filo Cubic 1-R4 IP68

Motor Cable Insular IP6

8

AE100151

71

Pannello centralina Cubic 1

External Display / Keyboard Cubic 1

BOUCHCOMPR4LC

74

Tappo laterale diam 100

Lateral Plug Diam 100

BL120934

76

Maniglia motore

Motor Handl

e

BL120945

77

Coperchio centralina di controllo

External Box Cover

BL120946

78

Supporto centralina di controllo

External Box Support

AC120159

79

Carta Elettronica Sanicubic 1 IP68 (->19/06/2019)

Circuit board cubic1 IP68 (->19/06/2019)

AC121159

79

Carta elettroncia Sanicubic 1 IP68 (da 20/06/19)

PCB Cubic 1 IP68 (from 20/06/19)

PRESNIV35CUBICNM

80

Pressostato per Sanicubic

PRESNIV35 with O-ring

s

PRESNIV35CUBICALARMN

80+81

"Allarme pressostato (

fili rossi

)

con giunti torici"

PRESNIV35 Alarm with O-rings

AC120172

90

Allarme via cavo (->19/06/2019)

Wired alarm box (->19/06/2019)

AC121172

90

Allarme via cavo (20/06/2019->)

Wired alarm box (20/06/2019->)

CONNECTMOTOR

91

Raccordo rapido motore

Motor Quick Connecto

r

CONNECTSIGNAL

92

Raccordo rapido galleggiante

PRESNIV Quick Connector

CUBICPROTECT

93

Filtro anti intrusione per centralina Cubic

Electric Housing Filter

69
