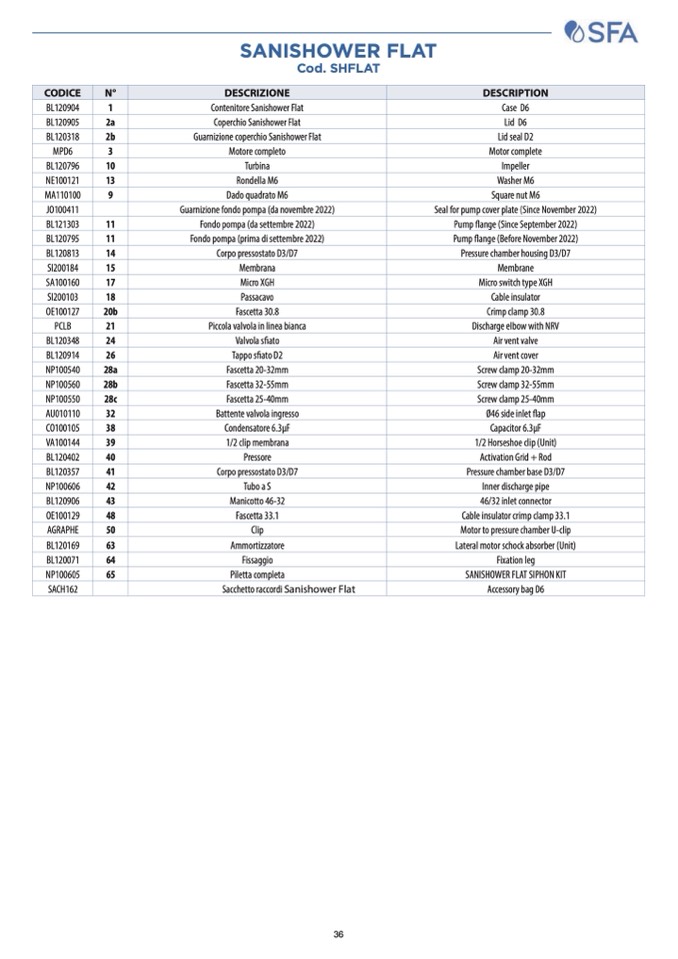

SANISHOWER FLAT

Cod. SHFLAT

N°

DESCRIZIONE

DESCRIPTION

1

Contenitore Sanishower Flat

Case D6

2a

Coperchio Sanishower Flat

Lid D

6

2b

Guarnizione coperchio Sanishower Flat

Lid seal D

2

3

Motore completo

Motor complet

e

10

Turbina

Impelle

r

13

Rondella M6

Washer M6

9

Dado quadrato M6

Square nut M6

Guarnizione fondo pompa (da novembre 2022)

Seal for pump cover plate (Since November 2022)

11

Fondo pompa (da settembre 2022)

Pump

flange (Since September 2022)

11

Fondo pompa (prima di settembre 2022)

Pump

flange (Before November 2022

)

14

Corpo pressostato D3/D7

Pressure chamber housing D3/D

7

15

Membrana

Membrane

17

Micro XGH

Micro switch type XG

H

18

Passacavo

Cable insulato

r

20b

Fascetta 30.8

Crimp clamp 30.8

21

Piccola valvola in linea bianca

Discharge elbow with NRV

24

Valvola sfiato

Air vent valve

26

Tappo sfiato D2

Air vent cover

28a

Fascetta 20-32mm

Screw clamp 20-32mm

28b

Fascetta 32-55mm

Screw clamp 32-55mm

28c

Fascetta 25-40mm

Screw clamp 25-40mm

32

Battente valvola ingresso

Ø46 side inlet fla

p

38

Condensatore 6.3µF

Capacitor 6.3µF

39

1/2 clip membrana

1/2 Horseshoe clip (Unit)

40

Pressore

Activation Grid + Rod

41

Corpo pressostato D3/D7

Pressure chamber base D3/D7

42

Tubo a S

Inner discharge pipe

43

Manicotto 46-32

46/32 inlet connecto

r

48

Fascetta 33.1

Cable insulator crimp clamp 33.1

50

Clip

Motor to pressure chamber U-cli

p

63

Ammortizzatore

Lateral motor schock absorber (Unit

)

64

Fissaggio

Fixation leg

65

Piletta completa

SANISHOWER FLAT SIPHON KIT

Sacchetto raccordi Sanishower Flat

Accessory bag D6

36
