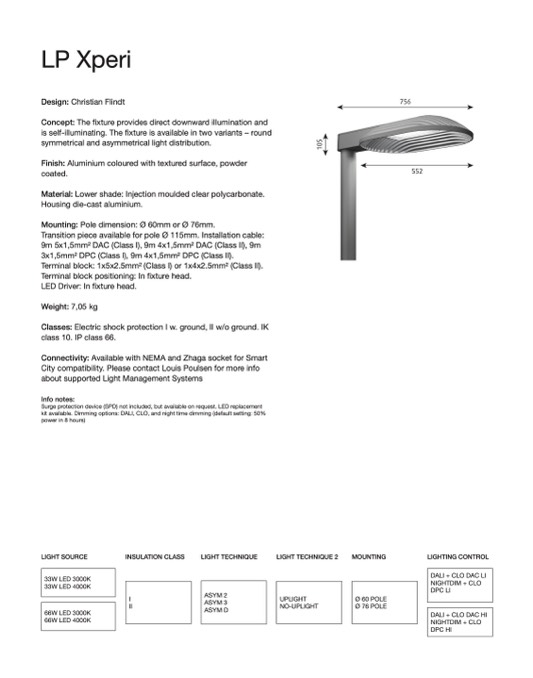

LP Xperi

Design: Christian Flindt

Concept: The fixture provides direct downward illumination and

is self-illuminating. The fixture is available in two variants – round

symmetrical and asymmetrical light distribution.

Finish: Aluminium coloured with textured surface, powder

coated.

Material: Lower shade: Injection moulded clear polycarbonate.

Housing die-cast aluminium.

Mounting: Pole dimension: Ø 60mm or Ø 76mm.

Transition piece available for pole Ø 115mm. Installation cable:

9m 5x1,5mm2 DAC (Class I), 9m 4x1,5mm2 DAC (Class II), 9m

3x1,5mm2 DPC (Class I), 9m 4x1,5mm2 DPC (Class II).

Terminal block: 1x5x2.5mm2 (Class I) or 1x4x2.5mm2 (Class II).

Terminal block positioning: In fixture head.

LED Driver: In fixture head.

Weight: 7,05 kg

Classes: Electric shock protection I w. ground, II w/o ground. IK

class 10. IP class 66.

Connectivity: Available with NEMA and Zhaga socket for Smart

City compatibility. Please contact Louis Poulsen for more info

about supported Light Management Systems

Info notes:

Surge protection device (SPD) not included, but available on request. LED replacement

kit available. Dimming options: DALI, CLO, and night time dimming (default setting: 50%

power in 8 hours)

LIGHT SOURCE

INSULATION CLASS

LIGHT TECHNIQUE

LIGHT TECHNIQUE 2

MOUNTING

LIGHTING CONTROL

33W LED 3000K

33W LED 4000K

DALI + CLO DAC LI

NIGHTDIM + CLO

DPC LI

I

II

ASYM 2

ASYM 3

ASYM D

UPLIGHT

NO-UPLIGHT

Ø 60 POLE

Ø 76 POLE

66W LED 3000K

66W LED 4000K

DALI + CLO DAC HI

NIGHTDIM + CLO

DPC HI
