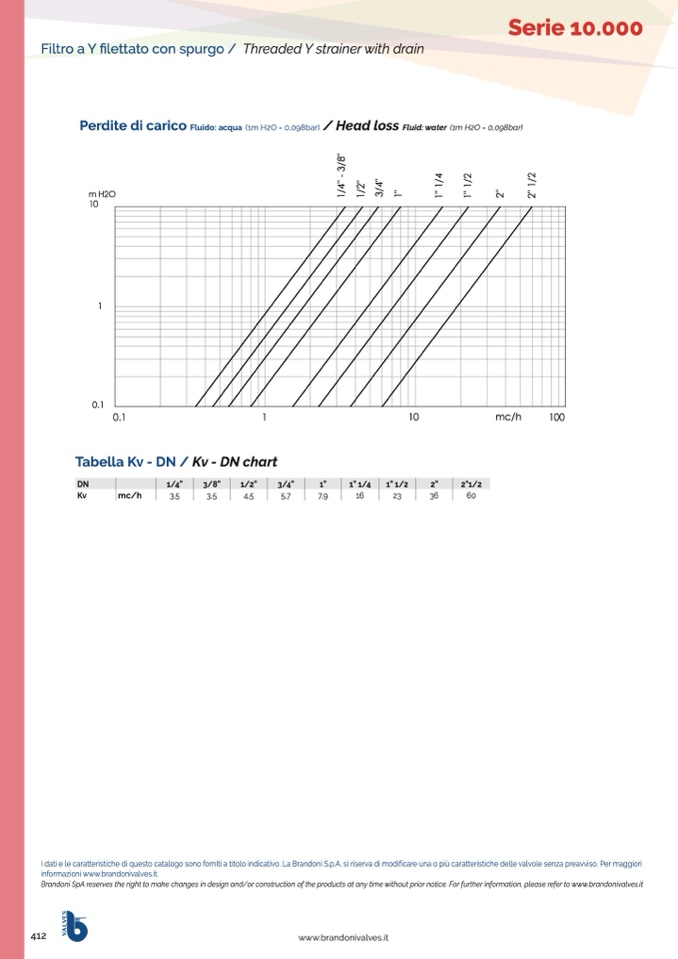

Filtro a Y filettato con spurgo / Threaded Y strainer with drain

Perdite di carico

Fluido: acqua (1m H2O = 0,098bar)

/ Head loss

Fluid: water (1m H2O = 0,098bar)

m H2O

10

1

0.1

Tabella Kv - DN / Kv - DN chart

Diagramma perdita di carico. Fluido : acqua / Loss of head diagram. Fluid : water.

TabellaKv-D

N

/Kv-DN rating

DN

1/4"

3/8"

1/2"

3/4"

1"

1" 1/4 1" 1/2

2"

mc/h

100

2" 1/2

Serie 10.000

0.1

1

10

DN

1m H2O = 0,0 981b/4a”r=0

,1k3P/a8”

1/2”

3/4”

1”

1” 1/4

1” 1/2

2”

2"1/2

Kv

mc/h

3,5

3,5

4,5

5,7

7,9

16

23

36

60

412

www.brandonivalves.it

3,5

3,5

4,5

5,7

7,9

16

23

36

60

Via Novara, 199 - 28078 Romagnano Sesia (No) ITALY

Tel. +39 0163 828 111 - Fax +39 0163 828 130

Internet: www.brandoni.it - e.mail: info@brandoni.it

I dati e le caratteristiche di questo catalogo sono forniti a titolo indicativo. La Brandoni S.p.A. si riserva di modificare una o più caratteristiche delle valvole senza preavviso. Per maggiori

informazioni www.brandonivalves.it.

Brandoni SpA reserves the right to make changes in design and/or construction of the products at any time without prior notice. For further information, please refer to www.brandonivalves.it
