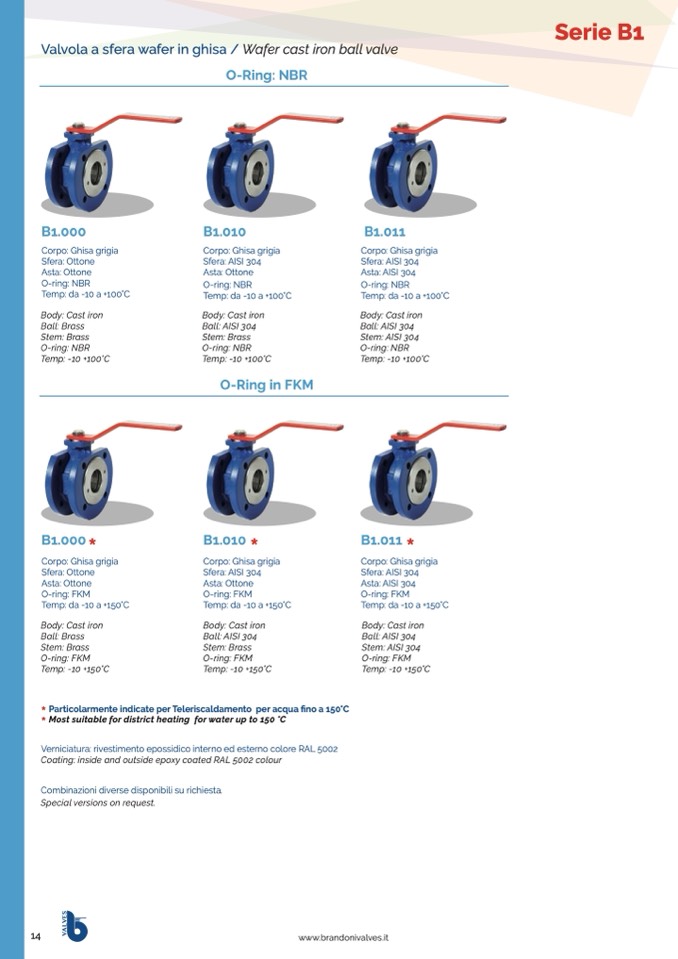

Valvola a sfera wafer in ghisa / Wafer cast iron ball valve
O-Ring: NBR
Serie B1
B1.000
Corpo: Ghisa grigia
Sfera: Ottone
Asta: Ottone
O-ring: NBR
Temp: da -10 a +100°C
Body: Cast iron
Ball: Brass
Stem: Brass
O-ring: NBR
Temp: -10 +100°C
B1.010
Corpo: Ghisa grigia
Sfera: AISI 304
Asta: Ottone
O-ring: NBR
Temp: da -10 a +100°C
Body: Cast iron
Ball: AISI 304
Stem: Brass
O-ring: NBR
Temp: -10 +100°C
O-Ring in FKM
B1.010
*
Corpo: Ghisa grigia
Sfera: AISI 304
Asta: Ottone
O-ring: FKM
Temp: da -10 a +150°C
Body: Cast iron
Ball: AISI 304
Stem: Brass
O-ring: FKM
Temp: -10 +150°C
B1.011
Corpo: Ghisa grigia
Sfera: AISI 304
Asta: AISI 304
O-ring: NBR
Temp: da -10 a +100°C
Body: Cast iron
Ball: AISI 304
Stem: AISI 304
O-ring: NBR
Temp: -10 +100°C
B1.000
*
Corpo: Ghisa grigia
Sfera: Ottone
Asta: Ottone
O-ring: FKM
Temp: da -10 a +150°C
Body: Cast iron
Ball: Brass
Stem: Brass
O-ring: FKM
Temp: -10 +150°C
B1.011
*
Corpo: Ghisa grigia
Sfera: AISI 304
Asta: AISI 304
O-ring: FKM
Temp: da -10 a +150°C
Body: Cast iron
Ball: AISI 304
Stem: AISI 304
O-ring: FKM
Temp: -10 +150°C
*
Particolarmente indicate per Teleriscaldamento per acqua fino a 150°C
*
Most suitable for district heating for water up to 150 °C
Verniciatura: rivestimento epossidico interno ed esterno colore RAL 5002
Coating: inside and outside epoxy coated RAL 5002 colour
Combinazioni diverse disponibili su richiesta.
Special versions on request.
