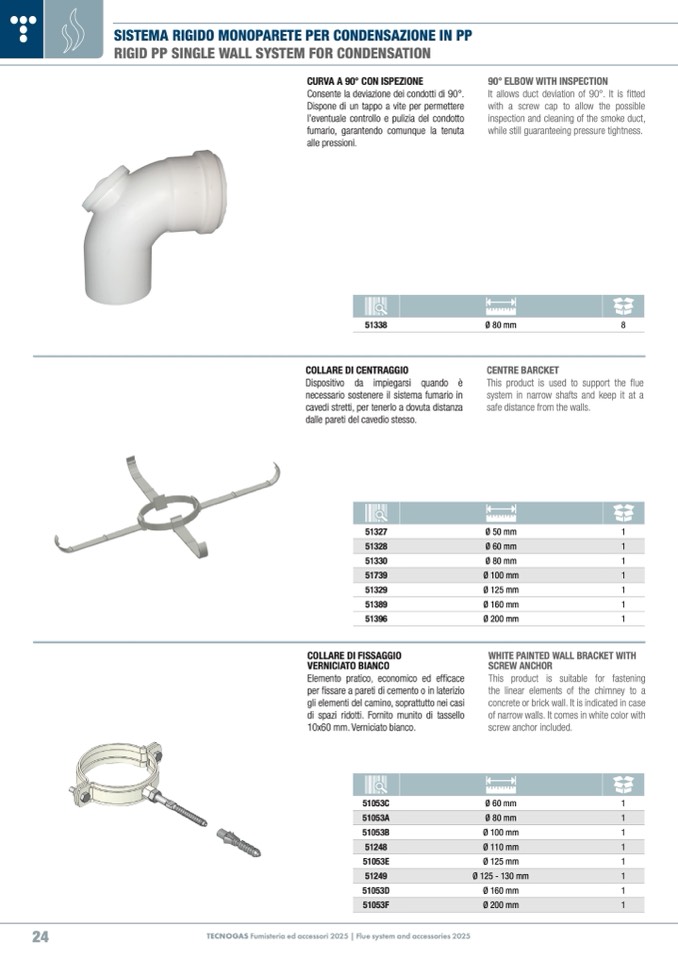

SISTEMA RIGIDO MONOPARETE PER CONDENSAZIONE IN PP

RIGID PP SINGLE WALL SYSTEM FOR CONDENSATION

CURVA A 90° CON ISPEZIONE

Consente la deviazione dei condotti di 90°.

Dispone di un tappo a vite per permettere

l’eventuale controllo e pulizia del condotto

fumario, garantendo comunque la tenuta

alle pressioni.

90° ELBOW WITH INSPECTION

It allows duct deviation of 90°. It is fitte

d

with a screw cap to allow the possible

inspection and cleaning of the smoke duct

,

while still guaranteeing pressure tightness

.

51338

Ø 80 mm

8

COLLARE DI CENTRAGGIO

Dispositivo da impiegarsi quando è

necessario sostenere il sistema fumario in

cavedi stretti, per tenerlo a dovuta distanza

dalle pareti del cavedio stesso.

CENTRE BARCKET

This product is used to support the

flue

system in narrow shafts and keep it at

a

safe distance from the walls.

51327

Ø 50 mm

1

51328

Ø 60 mm

1

51330

Ø 80 mm

1

51739

Ø 100 mm

1

51329

Ø 125 mm

1

51389

Ø 160 mm

1

51396

Ø 200 mm

1

COLLARE DI FISSAGGI

O

VERNICIATO BIANC

O

Elemento pratico, economico ed ef

ficace

per

fissare a pareti di cemento o in laterizi

o

gli elementi del camino, soprattutto nei cas

i

di spazi ridotti. Fornito munito di tassell

o

10x60 mm. Verniciato bianco

.

WHITE PAINTED WALL BRACKET WITH

SCREW ANCHOR

This product is suitable for fastening

the linear elements of the chimney to a

concrete or brick wall. It is indicated in case

of narrow walls. It comes in white color with

screw anchor included.

51053C

Ø 60 mm

1

51053A

Ø 80 mm

1

51053B

Ø 100 mm

1

51248

Ø 110 mm

1

51053E

Ø 125 mm

1

51249

Ø 125 - 130 mm

1

51053D

Ø 160 mm

1

51053F

Ø 200 mm

1

24
