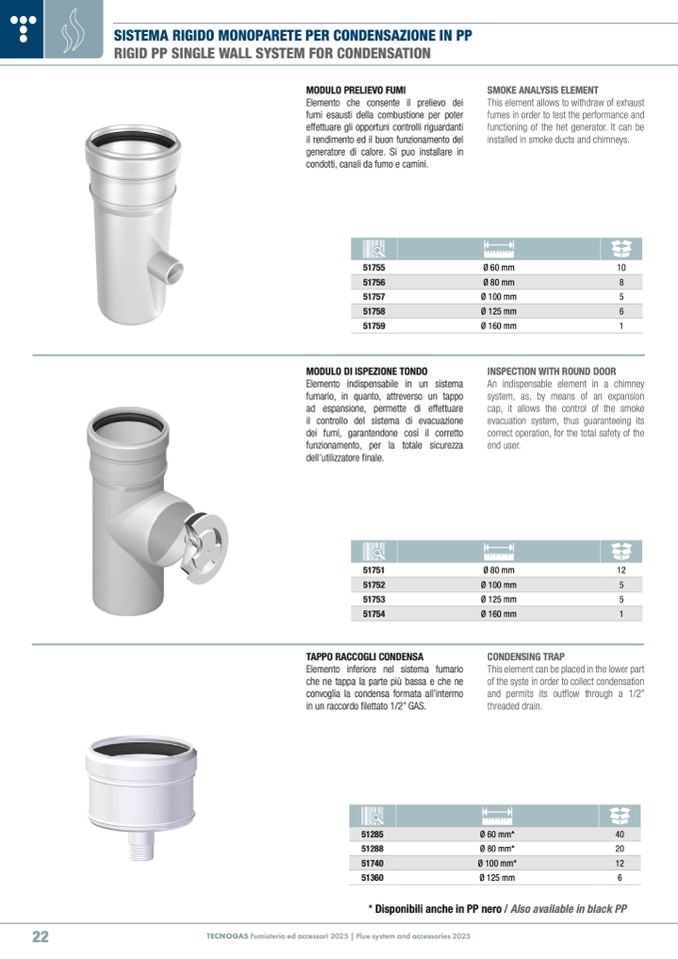

SISTEMA RIGIDO MONOPARETE PER CONDENSAZIONE IN PP

RIGID PP SINGLE WALL SYSTEM FOR CONDENSATION

MODULO PRELIEVO FUMI

Elemento che consente il prelievo dei

fumi esausti della combustione per poter

effettuare gli opportuni controlli riguardanti

il rendimento ed il buon funzionamento del

generatore di calore. Si puo installare i

n

condotti, canali da fumo e camini.

SMOKE ANALYSIS ELEMEN

T

This element allows to withdraw of exhaust

fumes in order to test the performance and

functioning of the het generator. It can be

installed in smoke ducts and chimneys.

51755

Ø 60 mm

10

51756

Ø 80 mm

8

51757

Ø 100 mm

5

51758

Ø 125 mm

6

51759

Ø 160 mm

1

MODULO DI ISPEZIONE TONDO

Elemento indispensabile in un sistema

fumario, in quanto, attreverso un tapp

o

ad espansione, permette di effettuare

il controllo del sistema di evacuazione

dei fumi, garantendone così il corretto

funzionamento, per la totale sicurezza

dell’utilizzatore finale

.

INSPECTION WITH ROUND DOO

R

An indispensable element in a chimney

system, as, by means of an expansion

cap, it allows the control of the smok

e

evacuation system, thus guaranteeing its

correct operation, for the total safety of th

e

end user.

51751

Ø 80 mm

12

51752

Ø 100 mm

5

51753

Ø 125 mm

5

51754

Ø 160 mm

1

TAPPO RACCOGLI CONDENSA

Elemento inferiore nel sistema fumario

che ne tappa la parte più bassa e che ne

convoglia la condensa formata all’intermo

in un raccordo

filettato 1/2” GAS.

CONDENSING TRAP

This element can be placed in the lower part

of the syste in order to collect condensatio

n

and permits its out

flow through a 1/2”

threaded drain

.

51285

Ø 60 mm*

40

51288

Ø 80 mm*

20

51740

Ø 100 mm*

12

51360

Ø 125 mm

6

* Disponibili anche in PP nero / Also available in black P

P

22
