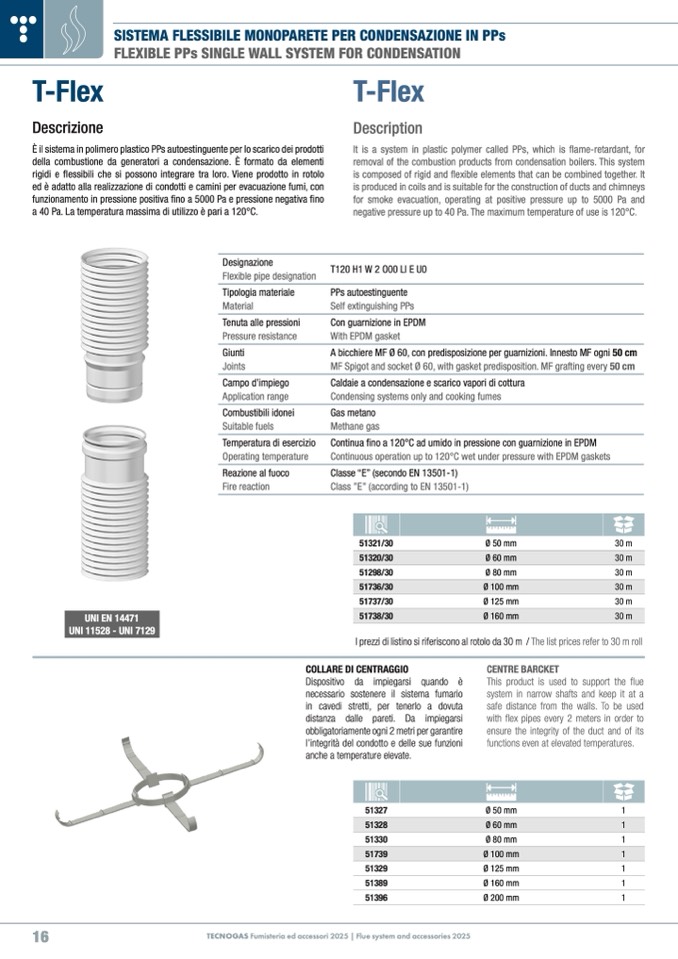

SISTEMA FLESSIBILE MONOPARETE PER CONDENSAZIONE IN PP

s

FLEXIBLE PPs SINGLE WALL SYSTEM FOR CONDENSATION

T-Flex

T-Fle

x

Descrizione

È il sistema in polimero plastico PPs autoestinguente per lo scarico dei prodotti

della combustione da generatori a condensazione. È formato da elementi

rigidi e flessibili che si possono integrare tra loro. Viene prodotto in rotolo

ed è adatto alla realizzazione di condotti e camini per evacuazione fumi, co

n

funzionamento in pressione positiva fino a 5000 Pa e pressione negativa

fino

a 40 Pa. La temperatura massima di utilizzo è pari a 120°C

.

Descriptio

n

It is a system in plastic polymer called PPs, which is flame-retardant, fo

r

removal of the combustion products from condensation boilers. This syste

m

is composed of rigid and flexible elements that can be combined together. I

t

is produced in coils and is suitable for the construction of ducts and chimney

s

for smoke evacuation, operating at positive pressure up to 5000 Pa an

d

negative pressure up to 40 Pa. The maximum temperature of use is 120°C.

Designazione

Flexible pipe designation

T120 H1 W 2 O00 LI E U0

Tipologia materiale

Material

PPs autoestinguent

e

Self extinguishing PPs

Tenuta alle pressioni

Pressure resistanc

e

Con guarnizione in EPD

M

With EPDM gaske

t

Giunt

i

Joints

A bicchiere MF Ø 60, con predisposizione per guarnizioni. Innesto MF ogni 50 cm

MF Spigot and socket Ø 60, with gasket predisposition. MF grafting every 50 cm

Campo d’impiego

Application range

Caldaie a condensazione e scarico vapori di cottur

a

Condensing systems only and cooking fume

s

Combustibili idonei

Suitable fuels

Gas metano

Methane gas

Temperatura di esercizio

Operating temperatur

e

Continua

fino a 120°C ad umido in pressione con guarnizione in EPD

M

Continuous operation up to 120°C wet under pressure with EPDM gaskets

Reazione al fuoco

Fire reaction

Classe “E” (secondo EN 13501-1)

Class ”E” (according to EN 13501-1)

51321/30

Ø 50 mm

30 m

51320/30

Ø 60 mm

30 m

51298/30

Ø 80 mm

30 m

51736/30

Ø 100 mm

30 m

51737/30

Ø 125 mm

30 m

UNI EN 14471

UNI 11528 - UNI 7129

51738/30

Ø 160 mm

30 m

I prezzi di listino si riferiscono al rotolo da 30 m / The list prices refer to 30 m roll

COLLARE DI CENTRAGGIO

Dispositivo da impiegarsi quando è

necessario sostenere il sistema fumario

in cavedi stretti, per tenerlo a dovuta

distanza dalle pareti. Da impiegarsi

obbligatoriamente ogni 2 metri per garantire

l’integrità del condotto e delle sue funzioni

anche a temperature elevate.

CENTRE BARCKET

This product is used to support the

flue

system in narrow shafts and keep it at

a

safe distance from the walls. To be use

d

with flex pipes every 2 meters in order to

ensure the integrity of the duct and of its

functions even at elevated temperatures

.

51327

Ø 50 mm

1

51328

Ø 60 mm

1

51330

Ø 80 mm

1

51739

Ø 100 mm

1

51329

Ø 125 mm

1

51389

Ø 160 mm

1

51396

Ø 200 mm

1

16
