02.COLLETTORI ED ACCESSOR

I

MANIFOLDS AND ACCESSORIES

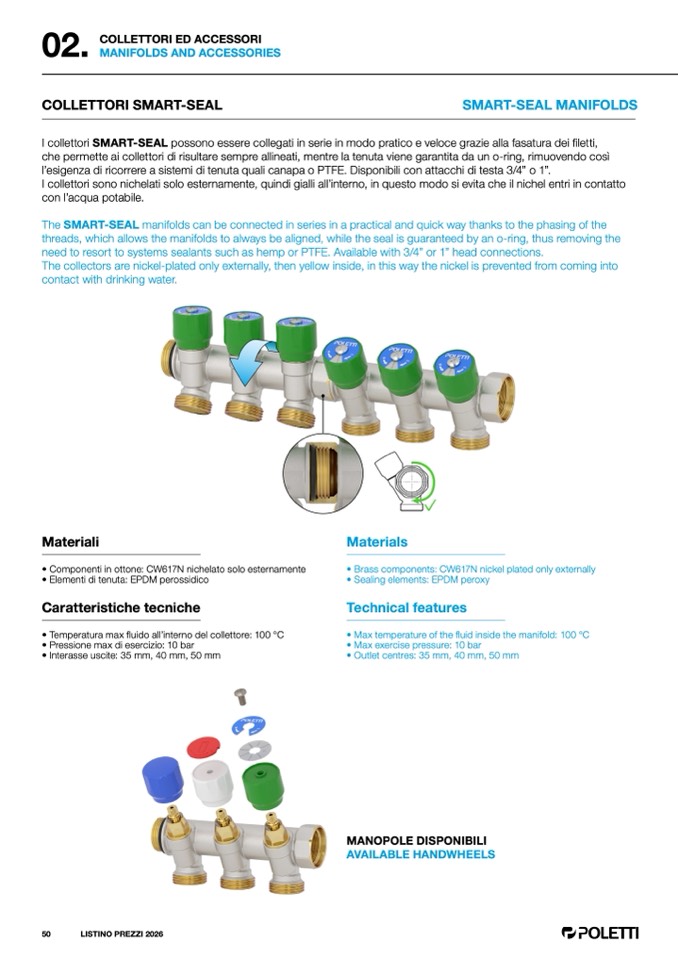

COLLETTORI SMART-SEAL

SMART-SEAL MANIFOLD

S

I collettori SMART-SEAL possono essere collegati in serie in modo pratico e veloce grazie alla fasatura dei

filetti

,

che permette ai collettori di risultare sempre allineati, mentre la tenuta viene garantita da un o-ring, rimuovendo così

l’esigenza di ricorrere a sistemi di tenuta quali canapa o PTFE. Disponibili con attacchi di testa 3/4” o 1”.

I collettori sono nichelati solo esternamente, quindi gialli all’interno, in questo modo si evita che il nichel entri in contatto

con l’acqua potabile.

The SMART-SEAL manifolds can be connected in series in a practical and quick way thanks to the phasing of the

threads, which allows the manifolds to always be aligned, while the seal is guaranteed by an o-ring, thus removing th

e

need to resort to systems sealants such as hemp or PTFE. Available with 3/4” or 1” head connections.

The collectors are nickel-plated only externally, then yellow inside, in this way the nickel is prevented from coming into

contact with drinking water

.

Materiali

Material

s

• Componenti in ottone: CW617N nichelato solo esternament

e

• Elementi di tenuta: EPDM perossidico

• Brass components: CW617N nickel plated only externally

• Sealing elements: EPDM perox

y

Caratteristiche tecniche

Technical feature

s

• Temperatura max fluido all’interno del collettore: 100 °C

• Pressione max di esercizio: 10 bar

• Interasse uscite: 35 mm, 40 mm, 50 mm

• Max temperature of the

fluid inside the manifold: 100 °C

• Max exercise pressure: 10 ba

r

• Outlet centres: 35 mm, 40 mm, 50 m

m

MANOPOLE DISPONIBILI

AVAILABLE HANDWHEELS

50

LISTINO PREZZI 2026
