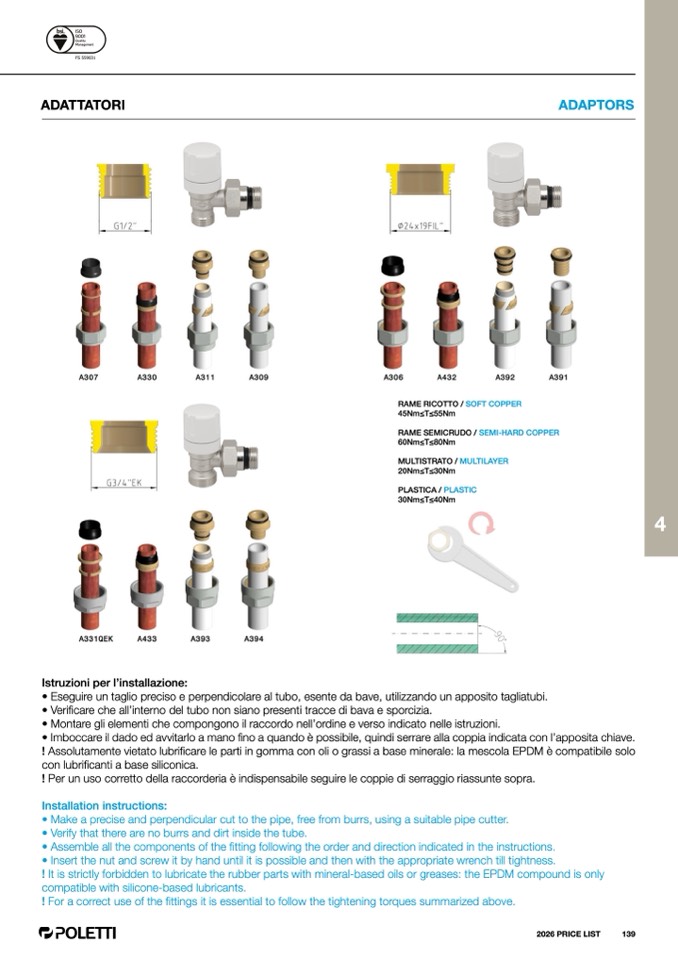

ADATTATORI

ADAPTOR

S

RAME RICOTTO / SOFT COPPER

45Nm≤T≤55N

m

RAME SEMICRUDO / SEMI-HARD COPPER

60Nm≤T≤80N

m

MULTISTRATO / MULTILAYER

20Nm≤T≤30N

m

PLASTICA / PLASTIC

30Nm≤T≤40N

m

4

Istruzioni per l’installazione

:

• Eseguire un taglio preciso e perpendicolare al tubo, esente da bave, utilizzando un apposito tagliatubi.

• Verificare che all’interno del tubo non siano presenti tracce di bava e sporcizia.

• Montare gli elementi che compongono il raccordo nell’ordine e verso indicato nelle istruzioni.

• Imboccare il dado ed avvitarlo a mano fino a quando è possibile, quindi serrare alla coppia indicata con l’apposita chiave.

! Assolutamente vietato lubrificare le parti in gomma con oli o grassi a base minerale: la mescola EPDM è compatibile solo

con lubrificanti a base siliconica.

! Per un uso corretto della raccorderia è indispensabile seguire le coppie di serraggio riassunte sopra.

Installation instructions

:

• Make a precise and perpendicular cut to the pipe, free from burrs, using a suitable pipe cutter

.

• Verify that there are no burrs and dirt inside the tube

.

• Assemble all the components of the fitting following the order and direction indicated in the instructions.

• Insert the nut and screw it by hand until it is possible and then with the appropriate wrench till tightness.

! It is strictly forbidden to lubricate the rubber parts with mineral-based oils or greases: the EPDM compound is only

compatible with silicone-based lubricants.

! For a correct use of the

fittings it is essential to follow the tightening torques summarized above.
