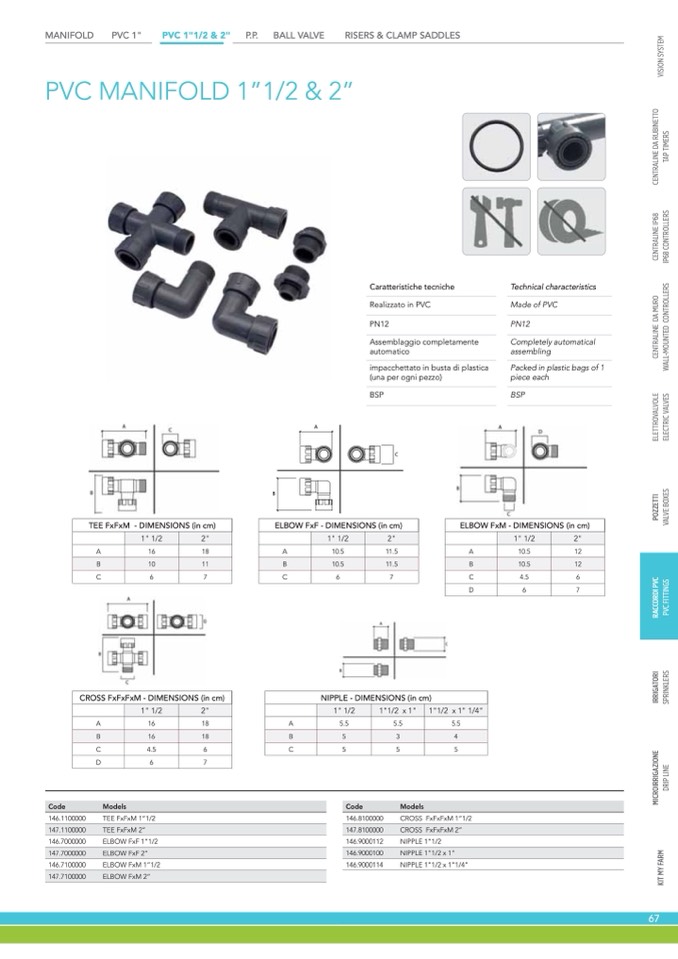

PVC MANIFOLD 1”1/2 & 2”
A
Caratteristiche tecniche
Realizzato in PVC
PN12
Assemblaggio completamente
automatico
impacchettato in busta di plastica
(una per ogni pezzo)
Technical characteristics
Made of PVC
PN12
Completely automatical
assembling
Packed in plastic bags of 1
piece each
BSP
BSP
C
B
TEE FxFxM - DIMENSIONS (in cm)
1" 1/2
2"
A
16
18
B
10
11
C
6
7
ELBOW FxF - DIMENSIONS (in cm)
1" 1/2
2"
A
10.5
11.5
B
10.5
11.5
C
6
7
ELBOW FxM - DIMENSIONS (in cm)
1" 1/2
2"
A
10.5
12
B
10.5
12
C
4.5
6
D
6
7
CROSS FxFxFxM - DIMENSIONS (in cm)
1" 1/2
2"
A
16
18
B
16
18
C
4.5
6
D
6
7
NIPPLE - DIMENSIONS (in cm)
1" 1/2
1"1/2 x 1"
1"1/2 x 1" 1/4"
A
5.5
5.5
5.5
B
5
3
4
C
5
5
5
Code
Models
Code
Models
146.1100000
146.7000000
146.7100000
TEE FxFxM 1”1/2
ELBOW FxF 1”1/2
ELBOW FxM 1”1/2
146.8100000
146.9000112
146.9000114
CROSS FxFxFxM 1”1/2
NIPPLE 1”1/2
NIPPLE 1”1/2 x 1”1/4”
147.1100000
TEE FxFxM 2”
147.8100000
CROSS FxFxFxM 2”
147.7000000
ELBOW FxF 2”
146.9000100
NIPPLE 1”1/2 x 1”
147.7100000
ELBOW FxM 2”
