1/2”
3/4”
1”
0.35
0.35
0.30
0.52
0.52
0.45
0.70
0.60
0.60
0.80
0.80
0.70
0.80
0.80
0.70
0.85
0.85
0.75
0.95
0.95
0.85
1.05
1.05
0.95
3/4”M
1”M
1/2”F
3/4”F
1”F
1”MxU
1”UxU
11.4
11.4
11.4
11.4
11.4
11.4
11.4
11.5
11.6
9.2
9.2
9.2
12.8
14.1
7.1
7.1
7.1
7.1
7.1
7.1
7.1
Code
Models
Code
Models
100.4500711
E.V. RN 150 FC 24VAC W/FC - 3/4"F
164.4500911
E.V.RN 150 FC 9VDC (AMP) W/FC - 1"F
100.4500911
E.V. RN 150 FC 24VAC W/FC - 1"F
103.1503000
MEMBRANA / SPARE DIAPHRAGM RN 150
100.4400915
E.V. RN 150 FC 24VAC W/FC - 1"M X UN.
RN 150
JAR-TOP
RN 155 PLUS
RN 160 PRO
RN 180
SOLENOIDS
PRESSURE REGULATOR

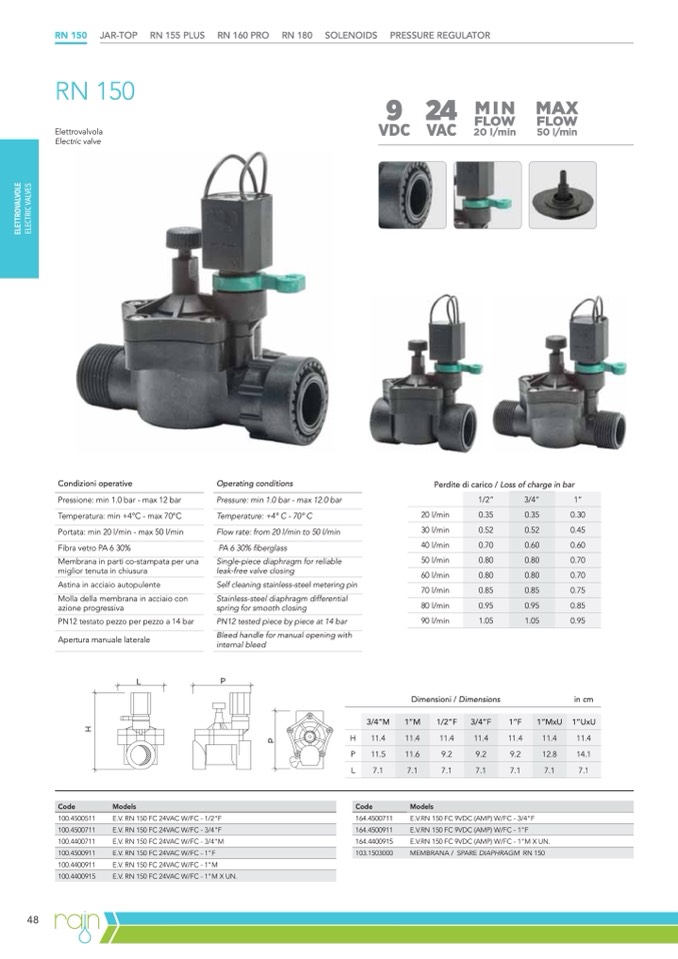

RN 150
Elettrovalvola
Electric valve
MIN MAX
FLOW
FLOW
20 l/min
50 l/min
Condizioni operative
Pressione: min 1.0 bar - max 12 bar
Temperatura: min +4°C - max 70°C
Portata: min 20 l/min - max 50 l/min
Fibra vetro PA 6 30%
Membrana in parti co-stampata per una
miglior tenuta in chiusura
Astina in acciaio autopulente
Molla della membrana in acciaio con
azione progressiva
PN12 testato pezzo per pezzo a 14 bar
Apertura manuale laterale
Operating conditions
Pressure: min 1.0 bar - max 12.0 bar
Temperature: +4° C - 70° C
Flow rate: from 20 l/min to 50 l/min
PA 6 30% fiberglass
Single-piece diaphragm for reliable
leak-free valve closing
Self cleaning stainless-steel metering pin
Stainless-steel diaphragm differential
spring for smooth closing
PN12 tested piece by piece at 14 bar
Bleed handle for manual opening with
internal bleed
Perdite di carico / Loss of charge in bar
20 l/min
L
P
E.V. RN 150 FC 24VAC W/FC - 1/2"F
E.V. RN 150 FC 24VAC W/FC - 3/4"M
E.V. RN 150 FC 24VAC W/FC - 1"M
30 l/min
40 l/min
50 l/min
60 l/min
70 l/min
80 l/min
90 l/min
Dimensioni / Dimensions
E.V.RN 150 FC 9VDC (AMP) W/FC - 3/4"F
E.V.RN 150 FC 9VDC (AMP) W/FC - 1"M X UN.
in cm
100.4500511
100.4400711
100.4400911
H
P
L
164.4500711
164.4400915
48
P
H
E
L
E
T
T
R
O
V
A
L
V
O
L
E
E
L
E
C
T
R
I
C
V
A
L
V
E
S
