ACCESSORI PER BIOMASSA / ACCESSORIES FOR BIOMASS

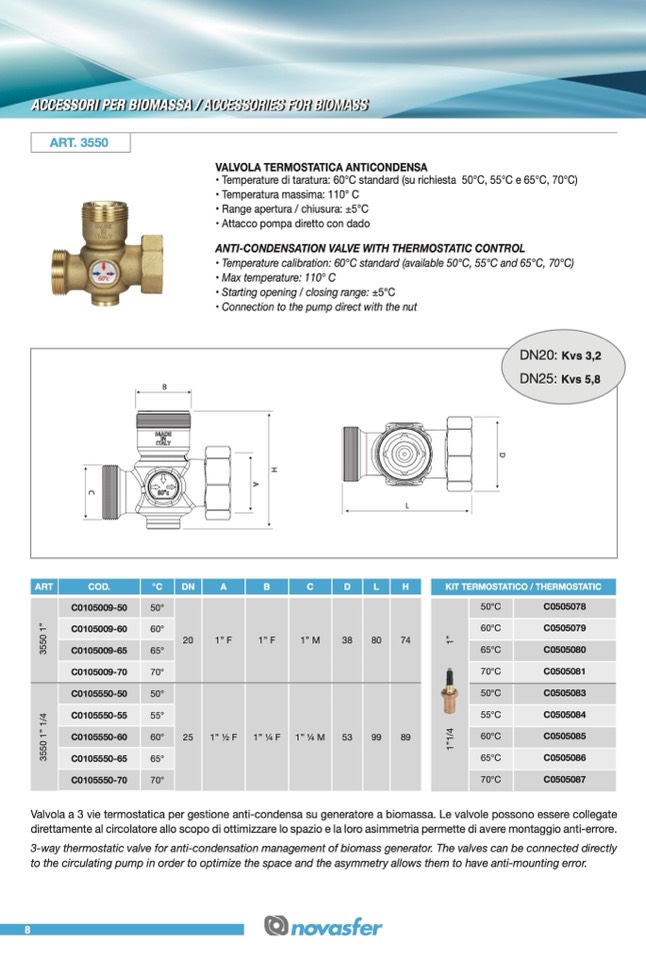

ART. 3550

ART

COD.

°C

DN

20

25

A

1’’ F

1’’ 1⁄2 F

B

1’’ F

1’’ 1⁄4 F

C

1’’ M

1’’ 1⁄4 M

D

38

53

L

80

99

L

H

74

89

KIT TERMOSTATICO / THERMOSTATIC

50°C

C0505078

60°C

C0505079

65°C

C0505080

70°C

C0505081

50°C

C0505083

55°C

C0505084

60°C

C0505085

65°C

C0505086

70°C

C0505087

C0105009-50

50°

C0105009-60

60°

C0105009-65

65°

C0105009-70

70°

C0105550-50

50°

C0105550-55

55°

C0105550-60

60°

C0105550-65

65°

C0105550-70

70°

B

DN20: Kvs 3,2

DN25: Kvs 5,8

VALVOLA TERMOSTATICA ANTICONDENSA

• Temperature di taratura: 60°C standard (su richiesta 50°C, 55°C e 65°C, 70°C)

• Temperatura massima: 110° C

• Range apertura / chiusura: ±5°C

• Attacco pompa diretto con dado

ANTI-CONDENSATION VALVE WITH THERMOSTATIC CONTROL

• Temperature calibration: 60°C standard (available 50°C, 55°C and 65°C, 70°C)

• Max temperature: 110° C

• Starting opening / closing range: ±5°C

• Connection to the pump direct with the nut

D

H

A

C

3

5

5

0

1

’

’

1

/

4

3

5

5

0

1

’

’

1

’

’

1

/

4

1

’

’

Valvola a 3 vie termostatica per gestione anti-condensa su generatore a biomassa. Le valvole possono essere collegate

direttamente al circolatore allo scopo di ottimizzare lo spazio e la loro asimmetria permette di avere montaggio anti-errore.

3-way thermostatic valve for anti-condensation management of biomass generator. The valves can be connected directly

to the circulating pump in order to optimize the space and the asymmetry allows them to have anti-mounting error.
