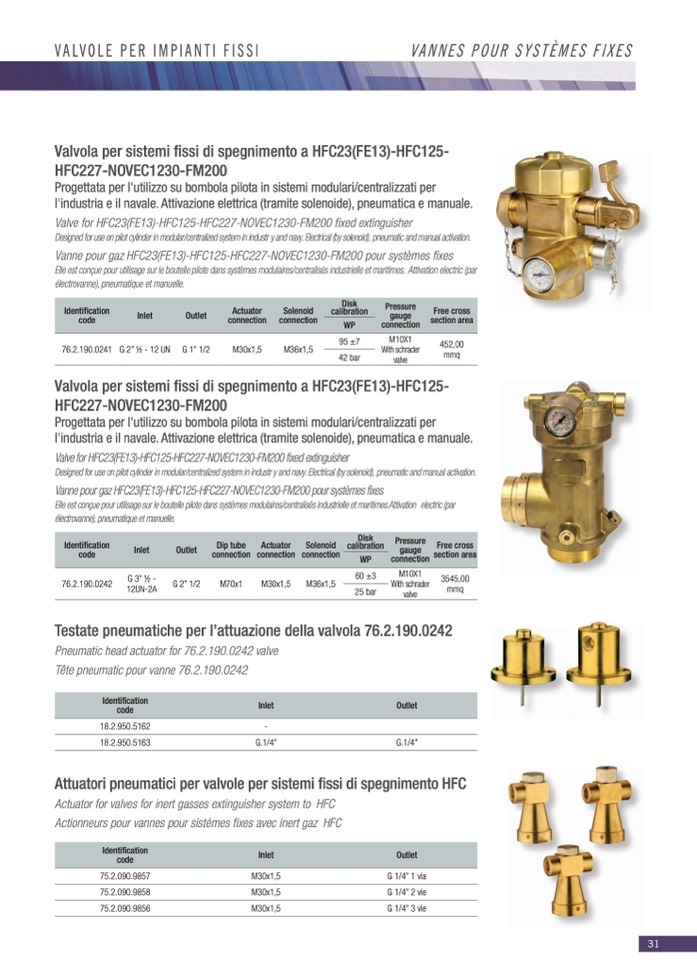

VALVOLE PER IMPIANTI FISSI
VANNES POUR SYSTÈMES FIXES
Valvola per sistemi fissi di spegnimento a HFC23(FE13)-HFC125-
HFC227-NOVEC1230-FM200
Progettata per l'utilizzo su bombola pilota in sistemi modulari/centralizzati per
l'industria e il navale. Attivazione elettrica (tramite solenoide), pneumatica e manuale.
Valve for HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 fixed extinguisher
Designed for use on pilot cylinder in modular/centralized system in industr y and navy. Electrical (by solenoid), pneumatic and manual activation.
Vanne pour gaz HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 pour syst
èmes fixes
Elle est conçue pour utilisage sur le boutelle pilote dans systèmes modulaires/centralisés industrielle et maritimes. Attivation electric (par
électrovanne), pneumatique et manuelle.
Valvola per sistemi fissi di spegnimento a HFC23(FE13)-HFC125-
HFC227-NOVEC1230-FM200
Progettata per l'utilizzo su bombola pilota in sistemi modulari/centralizzati per
l'industria e il navale. Attivazione elettrica (tramite solenoide), pneumatica e manuale.
Valve for HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 fixed extinguisher
Designed for use on pilot cylinder in modular/centralized system in industr y and navy. Electrical (by solenoid), pneumatic and manual activation.
Vanne pour gaz HFC23(FE13)-HFC125-HFC227-NOVEC1230-FM200 pour systèmes fixes
Elleestconçuepourutilisagesurleboutellepilotedanssystèmesmodulaires/centralisésindustrielleetmaritimes.Attivation electric(par
électrovanne), pneumatique et manuelle.
Testate pneumatiche per l’attuazione della valvola 76.2.190.0242
Pneumatic head actuator for 76.2.190.0242 valve
Tête pneumatic pour vanne 76.2.190.0242
Attuatori pneumatici per valvole per sistemi fissi di spegnimento HFC
Actuator for valves for inert gasses extinguisher system to HFC
Actionneurs pour vannes pour sistémes fixes avec inert gaz HFC
Identification
code
Inlet
Outlet
Actuator
connection
Solenoid
connection
Disk
calibration
Pressure
gauge
connection
Free cross
section area
WP
76.2.190.0241
G 2” 1⁄2 - 12 UN
G 1” 1/2
M30x1,5
M36x1,5
95 ±7
M10X1
With schrader
valve
452,00
mmq
42 bar
Identification
code
Inlet
Outlet
Dip tube
connection
Actuator
connection
Solenoid
connection
Disk
calibration
Pressure
gauge
connection
Free cross
section area
WP
76.2.190.0242
G 3” 1⁄2 -
12UN-2A
G 2” 1/2
M70x1
M30x1,5
M36x1,5
60 ±3
M10X1
With schrader
valve
3545,00
mmq
25 bar
Identification
code
Inlet
Outlet
18.2.950.5162
-
18.2.950.5163
G.1/4”
G.1/4”
Identification
code
Inlet
Outlet
75.2.090.9857
M30x1,5
G 1/4” 1 via
75.2.090.9858
M30x1,5
G 1/4” 2 vie
75.2.090.9856
M30x1,5
G 1/4” 3 vie
31
