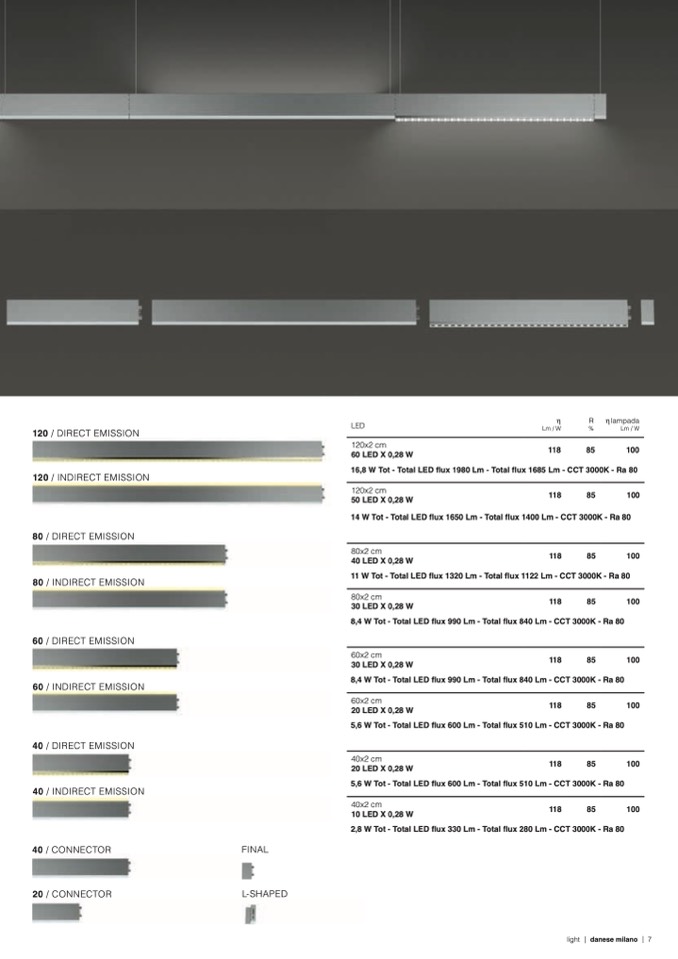

120 / DIRECT EMISSION
120 / INDIRECT EMISSION
80 / DIRECT EMISSION
80 / INDIRECT EMISSION
60 / DIRECT EMISSION
60 / INDIRECT EMISSION
40 / DIRECT EMISSION
40 / INDIRECT EMISSION
40 / CONNECTOR
20 / CONNECTOR
%
Lm / W
LED
η
Lm / W
R
ηlampada
120x2 cm
118
16,8 W Tot - Total LED flux 1980 Lm - Total flux 1685 Lm - CCT 3000K - Ra 80
60 LED X 0,28 W
85
100
120x2 cm
118
85
100
14 W Tot - Total LED flux 1650 Lm - Total flux 1400 Lm - CCT 3000K - Ra 80
50 LED X 0,28 W
80x2 cm
118
85
100
11 W Tot - Total LED flux 1320 Lm - Total flux 1122 Lm - CCT 3000K - Ra 80
100
- Ra 80
100
- Ra 80
100
- Ra 80
100
- Ra 80
100
- Ra 80
40 LED X 0,28 W
80x2 cm
118
85
8,4 W Tot - Total LED flux 990 Lm - Total flux 840 Lm - CCT 3000K
30 LED X 0,28 W
FINAL
L-SHAPED
60x2 cm
118
85
8,4 W Tot - Total LED flux 990 Lm - Total flux 840 Lm - CCT 3000K
30 LED X 0,28 W
60x2 cm
118
85
5,6 W Tot - Total LED flux 600 Lm - Total flux 510 Lm - CCT 3000K
20 LED X 0,28 W
40x2 cm
118
85
5,6 W Tot - Total LED flux 600 Lm - Total flux 510 Lm - CCT 3000K
20 LED X 0,28 W
40x2 cm
118
85
2,8 W Tot - Total LED flux 330 Lm - Total flux 280 Lm - CCT 3000K
10 LED X 0,28 W
