Tre is an innovative and very flexible open modular system, designed to adapt to

all workplace lighting needs yet ensuring high comfort and quality performance.

Technical, optical and functional aspects and manufacturing intelligence are

the driving forces behind this project, while the shape and basic technology

contribute to the aesthetics of the product.

Regarding the optical design, its flexibility represents a paradigm shift. In fact,

traditional office systems lose their flexibility when regulation compliance is

required.

The design is based on a thorough study of performance requirements and

relies on the use of the latest LED technology; traditional models are called into

question.

Tre ensures luminance uniformity at different heights with diverse spacing, yet

guaranteeing a dark light emission in compliance with UNI 12464.

Based on the principle of asymmetric optics, the entire system works on two

axes, regulating the emission of the LED according to two different openings:

30 ° and 42 °.

The rectangular beam profile is enclosed in a holder that has the shape of a

square. The two axis-aligned square allows the user to choose different positions

and combinations.

The combinations of optics arranged with axes along constant or alternating

guidelines define the three constructive matrices, which help regulate the light

flow by meeting luminance requirements and UGR according to installation.

To optimize production processes, various optic cells are grouped into

predefined modules that are combined to match the output of equivalent power

compact fluorescent systems currently on the market.

Even though Tre offers performance comparable or higher than traditional

fluorescent systems, it is smaller and its power consumption is lower.

As opposed to traditional dark light office equipment compliant with emission

standards that dominates space but does not respond to any physical or

emotional needs, Tre lets you modulate light in space according to light and

shadow rhythms, ensuring different perceptual experiences.

The different optical configurations illuminate specific areas based on what ́s

needed.

The technical control and monitoring of light makes you feel good: being in a

pleasant environment in which the light is managed and modulated well so that

intensity variations can model the space.

The light emitted is corrected but pleasant and provides responses for all

requirements, equally suitable for home and office.

Tre comes in square units particularly suitable for significant heights and wider

illumination areas and in linear modules perfect for suspension so that users can

control light better on work surfaces.

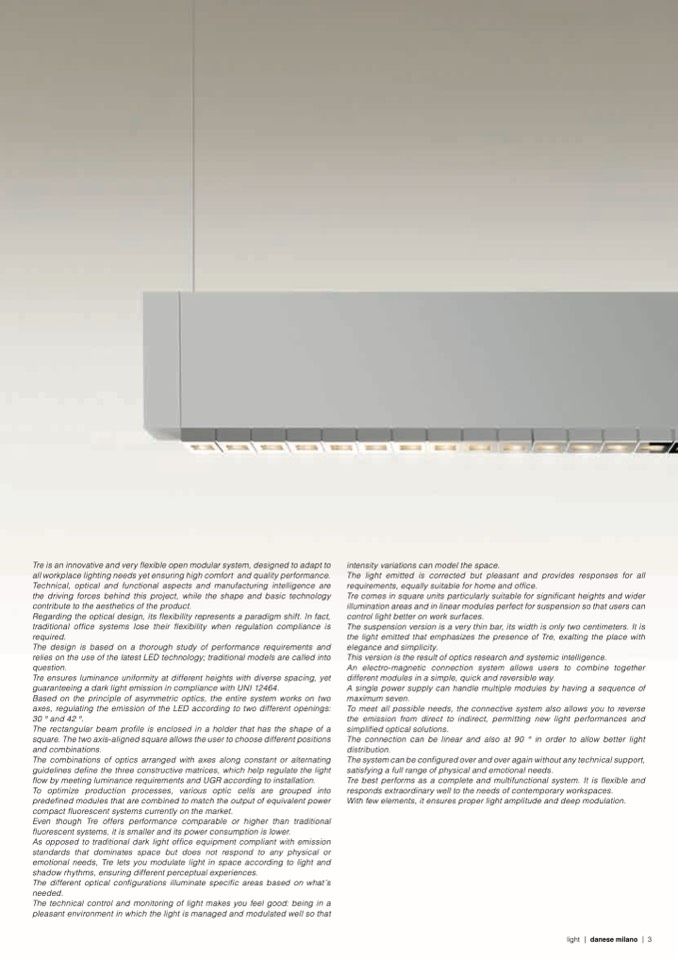

The suspension version is a very thin bar, its width is only two centimeters. It is

the light emitted that emphasizes the presence of Tre, exalting the place with

elegance and simplicity.

This version is the result of optics research and systemic intelligence.

An electro-magnetic connection system allows users to combine together

different modules in a simple, quick and reversible way.

A single power supply can handle multiple modules by having a sequence of

maximum seven.

To meet all possible needs, the connective system also allows you to reverse

the emission from direct to indirect, permitting new light performances and

simplified optical solutions.

The connection can be linear and also at 90 ° in order to allow better light

distribution.

The system can be configured over and over again without any technical support,

satisfying a full range of physical and emotional needs.

Tre best performs as a complete and multifunctional system. It is flexible and

responds extraordinary well to the needs of contemporary workspaces.

With few elements, it ensures proper light amplitude and deep modulation.
