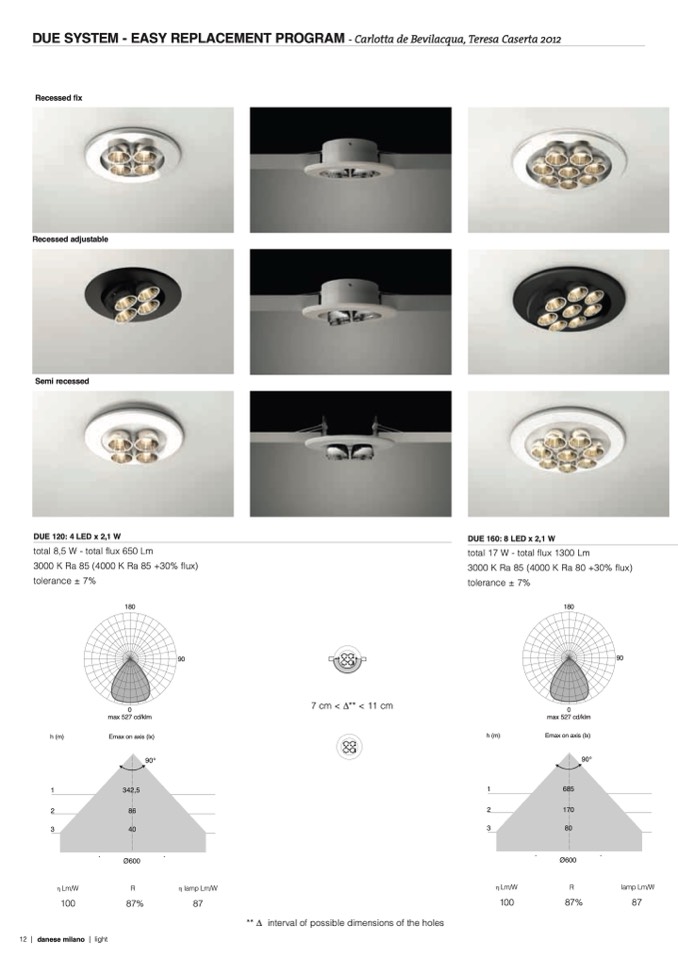

DUE SYSTEM - EASY REPLACEMENT PROGRAM - Carlotta de Bevilacqua, Teresa Caserta 2012

Recessed fix

Recessed adjustable

Semi recessed

DUE 120: 4 LED x 2,1 W

total 8,5 W - total flux 650 Lm

3000 K Ra 85 (4000 K Ra 85 +30% flux)

tolerance ± 7%

DUE 160: 8 LED x 2,1 W

total 17 W - total flux 1300 Lm

3000 K Ra 85 (4000 K Ra 80 +30% flux)

tolerance ± 7%

180

0

max 527 cd/klm

Emax on axis (lx)

90°

1

2

86

3

40

Ø600

ηLm/W

R

100

87%

90

180

0

max 527 cd/klm

Emax on axis (lx)

90°

1

2

170

3

80

Ø600

ηLm/W

R

100

87%

90

h (m)

h (m)

7 cm < ∆** < 11 cm

342,5

685

12 |

danese milano | light

η lampLm/W

87

lampLm/W

87

** ∆ interval of possible dimensions of the holes
