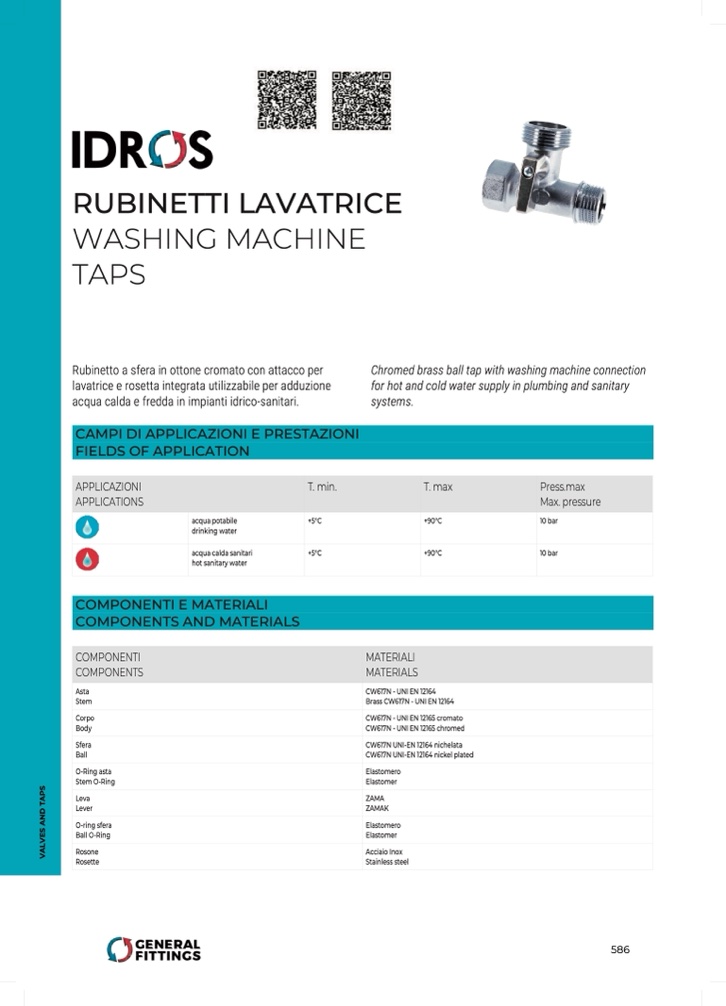

RUBINETTI LAVATRICE

WASHING MACHINE

TAPS

Rubinetto a sfera in ottone cromato con attacco per

lavatrice e rosetta integrata utilizzabile per adduzione

acqua calda e fredda in impianti idrico-sanitari.

Chromed brass ball tap with washing machine connection

for hot and cold water supply in plumbing and sanitary

systems.

CAMPI DI APPLICAZIONI E PRESTAZIONI

FIELDS OF APPLICATION

APPLICAZIONI

APPLICATIONS

T. min.

T. max

Press.max

Max. pressure

acqua potabile

drinking water

+5°C

+90°C

10 bar

acqua calda sanitari

hot sanitary water

+5°C

+90°C

10 bar

COMPONENTI E MATERIALI

COMPONENTS AND MATERIALS

COMPONENTI

COMPONENTS

MATERIALI

MATERIALS

Asta

CW617N

- UNI EN

12164

Stem

Brass CW617N

- UNI EN

12164

Corpo

CW617N

- UNI EN

12165 cromato

Body

CW617N

- UNI EN

12165 chromed

Sfera

CW617N

UNI-EN

12164 nichelata

Ball

CW617N

UNI-EN

12164 nickel plated

O-Ring asta

Elastomero

Stem

O-Ring

Elastomer

Leva

ZAMA

Lever

ZAMAK

O-ring sfera

Elastomero

Ball O-Ring

Elastomer

Rosone

Acciaio Inox

Rosette

Stainless steel
