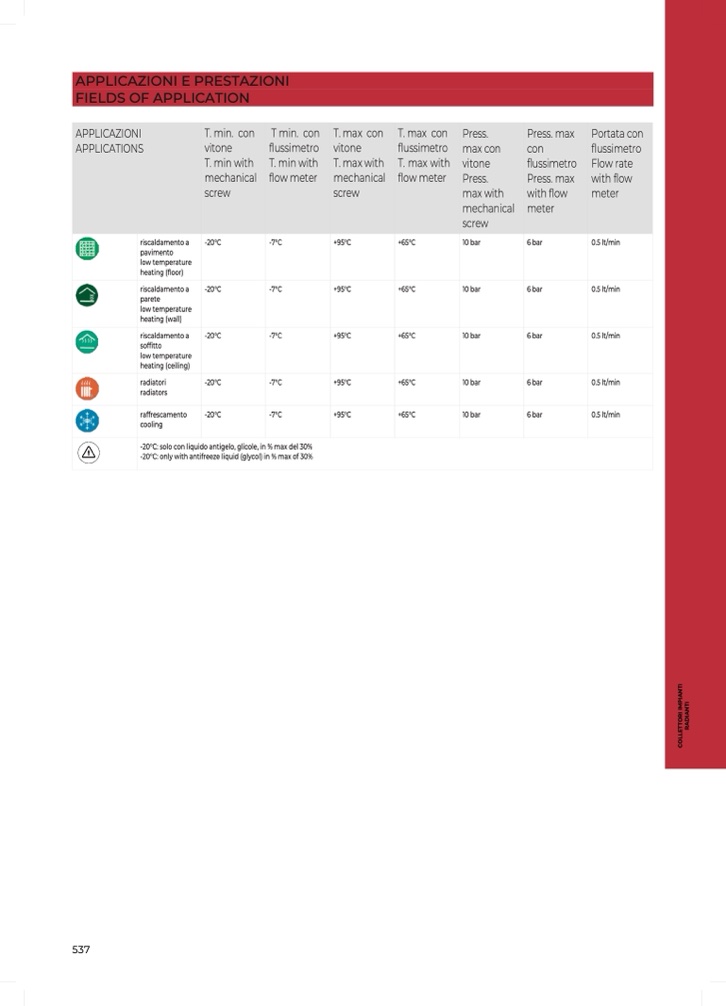

APPLICAZIONI E PRESTAZIONI

FIELDS OF APPLICATION

APPLICAZIONI

APPLICATIONS

T. min. con

vitone

T. min with

mechanical

screw

Tmin. con

flussimetro

T. min with

flow

meter

T. max con

vitone

T. max with

mechanical

screw

T. max con

flussimetro

T. max with

flow

meter

Press.

max con

vitone

Press.

max with

mechanical

screw

Press. max

con

flussimetro

Press. max

with flow

meter

Portata con

flussimetro

Flow

rate

with flow

meter

riscaldamento a

pavimento

low

temperature

heating (floor)

-20°C

-7°C

+95°C

+65°C

10 bar

6 bar

0.5 lt/min

riscaldamento a

parete

low

temperature

heating (wall)

-20°C

-7°C

+95°C

+65°C

10 bar

6 bar

0.5 lt/min

riscaldamento a

soffitto

low

temperature

heating (ceiling)

-20°C

-7°C

+95°C

+65°C

10 bar

6 bar

0.5 lt/min

radiatori

radiators

-20°C

-7°C

+95°C

+65°C

10 bar

6 bar

0.5 lt/min

raffrescamento

cooling

-20°C

-7°C

+95°C

+65°C

10 bar

6 bar

0.5 lt/min

-20°C: solo con liquido antigelo, glicole, in %

max del 30%

-20°C: only with antifreeze liquid (glycol) in %

max of 30%
