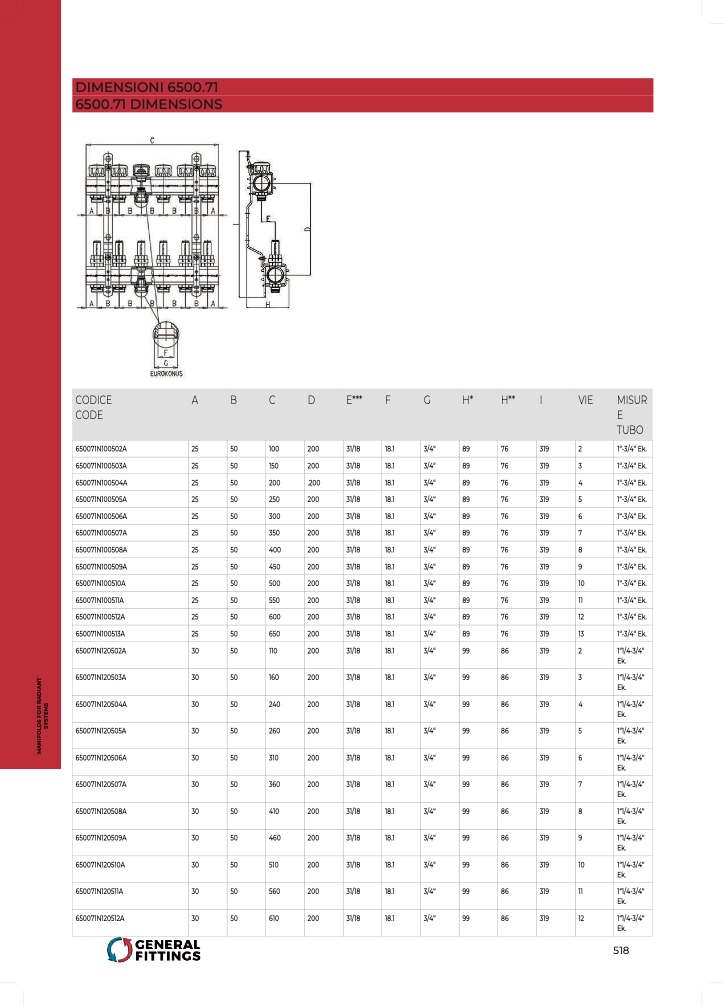

DIMENSIONI 6500.71
6500.71 DIMENSIONS
CODICE
CODE
A
B
C
D
E***
F
G
H*
H**
I
VIE
MISUR
E
TUBO
650071N100502A
25
50
100
200
31/18
18.1
3/4“
89
76
319
2
1“-3/4“ Ek.
650071N100503A
25
50
150
200
31/18
18.1
3/4“
89
76
319
3
1“-3/4“ Ek.
650071N100504A
25
50
200
.200
31/18
18.1
3/4“
89
76
319
4
1“-3/4“ Ek.
650071N100505A
25
50
250
200
31/18
18.1
3/4“
89
76
319
5
1“-3/4“ Ek.
650071N100506A
25
50
300
200
31/18
18.1
3/4“
89
76
319
6
1“-3/4“ Ek.
650071N100507A
25
50
350
200
31/18
18.1
3/4“
89
76
319
7
1“-3/4“ Ek.
650071N100508A
25
50
400
200
31/18
18.1
3/4“
89
76
319
8
1“-3/4“ Ek.
650071N100509A
25
50
450
200
31/18
18.1
3/4“
89
76
319
9
1“-3/4“ Ek.
650071N100510A
25
50
500
200
31/18
18.1
3/4“
89
76
319
10
1“-3/4“ Ek.
650071N100511A
25
50
550
200
31/18
18.1
3/4“
89
76
319
11
1“-3/4“ Ek.
650071N100512A
25
50
600
200
31/18
18.1
3/4“
89
76
319
12
1“-3/4“ Ek.
650071N100513A
25
50
650
200
31/18
18.1
3/4“
89
76
319
13
1“-3/4“ Ek.
650071N120502A
30
50
110
200
31/18
18.1
3/4“
99
86
319
2
1“1/4-3/4“
Ek.
650071N120503A
30
50
160
200
31/18
18.1
3/4“
99
86
319
3
1“1/4-3/4“
Ek.
650071N120504A
30
50
240
200
31/18
18.1
3/4“
99
86
319
4
1“1/4-3/4“
Ek.
650071N120505A
30
50
260
200
31/18
18.1
3/4“
99
86
319
5
1“1/4-3/4“
Ek.
650071N120506A
30
50
310
200
31/18
18.1
3/4“
99
86
319
6
1“1/4-3/4“
Ek.
650071N120507A
30
50
360
200
31/18
18.1
3/4“
99
86
319
7
1“1/4-3/4“
Ek.
650071N120508A
30
50
410
200
31/18
18.1
3/4“
99
86
319
8
1“1/4-3/4“
Ek.
650071N120509A
30
50
460
200
31/18
18.1
3/4“
99
86
319
9
1“1/4-3/4“
Ek.
650071N120510A
30
50
510
200
31/18
18.1
3/4“
99
86
319
10
1“1/4-3/4“
Ek.
650071N120511A
30
50
560
200
31/18
18.1
3/4“
99
86
319
11
1“1/4-3/4“
Ek.
650071N120512A
30
50
610
200
31/18
18.1
3/4“
99
86
319
12
1“1/4-3/4“
Ek.
