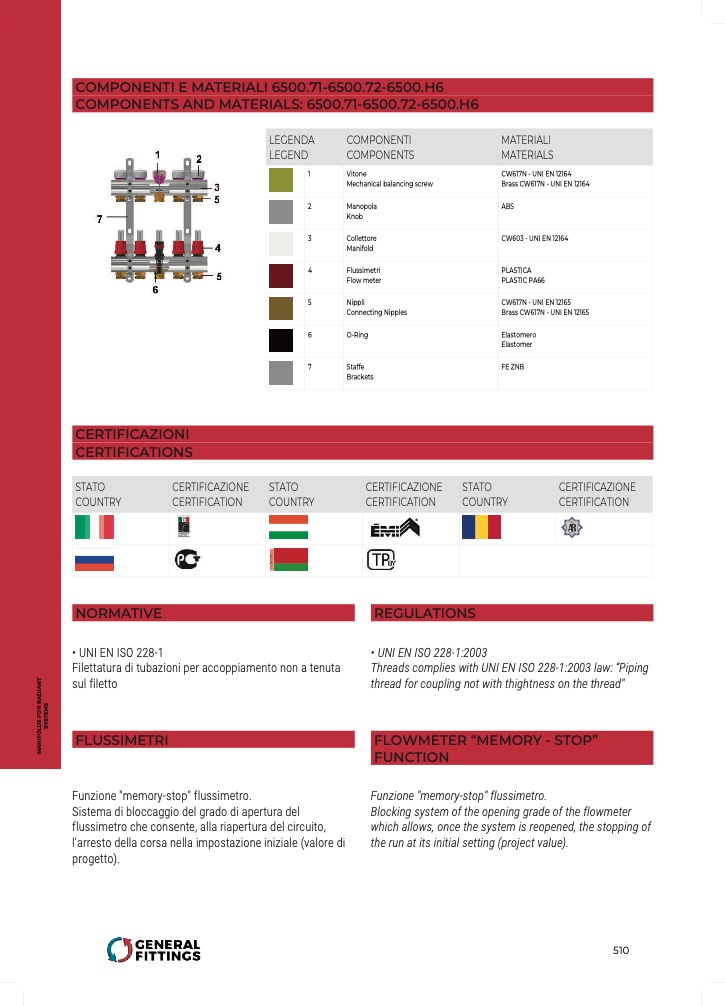

COMPONENTI E MATERIALI 6500.71-6500.72-6500.H6

COMPONENTS AND MATERIALS: 6500.71-6500.72-6500.H6

LEGENDA

LEGEND

COMPONENTI

COMPONENTS

MATERIALI

MATERIALS

1

Vitone

Mechanical balancing screw

CW617N

- UNI EN

12164

Brass CW617N

- UNI EN

12164

2

Manopola

Knob

ABS

3

Collettore

Manifold

CW603 - UNI EN

12164

4

Flussimetri

Flow

meter

PLASTICA

PLASTIC PA66

5

Nippli

Connecting Nipples

CW617N

- UNI EN

12165

Brass CW617N

- UNI EN

12165

6

O-Ring

Elastomero

Elastomer

7

Staffe

Brackets

FE ZNB

CERTIFICAZIONI

CERTIFICATIONS

STATO

COUNTRY

CERTIFICAZIONE

CERTIFICATION

STATO

COUNTRY

CERTIFICAZIONE

CERTIFICATION

STATO

COUNTRY

CERTIFICAZIONE

CERTIFICATION

NORMATIVE

• UNI EN ISO 228-1

Filettatura di tubazioni per accoppiamento non a tenuta

sul filetto

FLUSSIMETRI

Funzione "memory-stop" flussimetro.

Sistema di bloccaggio del grado di apertura del

flussimetro che consente, alla riapertura del circuito,

l’arresto della corsa nella impostazione iniziale (valore di

progetto).

REGULATIONS

• UNI EN ISO 228-1:2003

Threads complies with UNI EN ISO 228-1:2003 law: “Piping

thread for coupling not with thightness on the thread"

Funzione "memory-stop" flussimetro.

Blocking system of the opening grade of the flowmeter

which allows, once the system is reopened, the stopping of

the run at its initial setting (project value).

FLOWMETER “MEMORY - STOP”

FUNCTION
